Name: BTE-100-01-L-D-A
Brand: Samtec Inc.
SKU: BTE-100-01-L-D-A
Price: 16.63000 USD
Availability: InStock

new

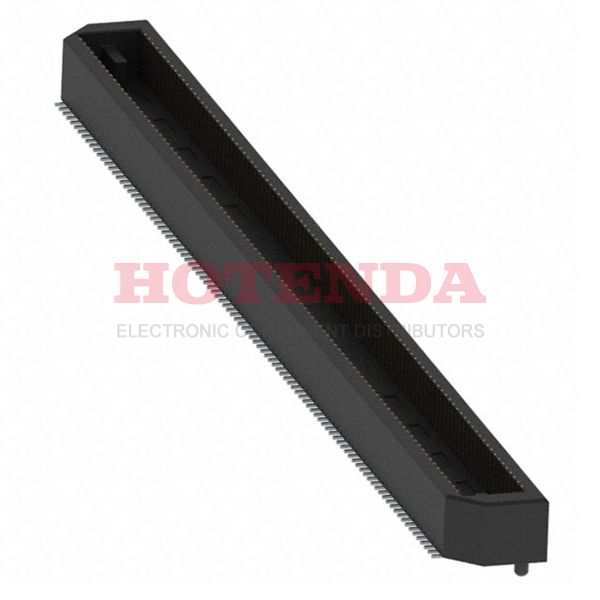

BTE-100-01-L-D-A

Manufacturer part number:BTE-100-01-L-D-A

Manufacturer:Samtec Inc.

Description:BTE-100-01-L-D-A datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:BTE-100-01-L-D-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Bronze
Mounting Type	Surface Mount
Housing Material	Polymer
Board Mounting Option	POSITIONING PIN
Packaging	Tube
Published	2015
Series	BTE
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Outer Shroud Contacts
Number of Positions	200
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Number of Rows	2
Gender	Male
Additional Feature	E.L.P
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.031 0.80mm
Total Number of Contacts	200
Orientation	Straight
Depth	5.97mm
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Rated Current (Signal)	2A
Contact Style	CENTRONIC
Body/Shell Style	RECEPTACLE
Max Voltage Rating (AC)	225V
Max Current Rating	2A
Polarization Key	ENDS
PCB Contact Row Spacing	6.096 mm
Durability	100 Cycles
Contact Pattern	RECTANGULAR
Length	84mm
Contact Finish Thickness	10.0μin 0.25μm
Plating Thickness	10μin
Height Above Board	0.160 4.06mm
Stack Height (Mating)	5.03mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

BTE-100-01-L-D-A Product Details

BTE-100-01-L-D-A Overview
