Name: 5-5316464-0
Brand: TE Connectivity AMP Connectors
SKU: 5-5316464-0
Price: 16.52000 USD
Availability: InStock

new

5-5316464-0

Manufacturer part number:5-5316464-0

Manufacturer:TE Connectivity AMP Connectors

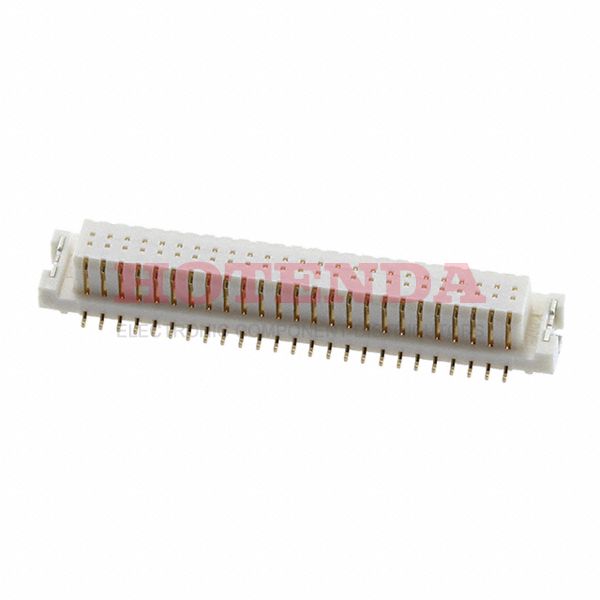

Description:Receptacle, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 50 Positions Fine Mate Gold SMD/SMT, Solder

Case Package:SOT-23

Datasheet:5-5316464-0 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Nylon
PCB Mounting Orientation	Vertical
Packaging	Tape & Reel (TR)
Published	2005
Series	Fine Mate
Feature	Board Guide, Solder Retention
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT, Solder
ECCN Code	EAR99
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	50
Max Operating Temperature	221°C
Min Operating Temperature	-22°C
Number of Rows	2
HTS Code	8536.69.40.40
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Option	GENERAL PURPOSE
Pitch	0.031 0.80mm
Orientation	Straight
Depth	4.1mm
Contact Finish	Gold
Housing Color	Natural
Insulation Resistance	500MOhm
Contact Current Rating	500mA
Stackable	Yes
Length	23.5mm
Contact Finish Thickness	8.00μin 0.203μm
Plating Thickness	127 nm
Height Above Board	0.126 3.20mm
Stack Height	4.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

5-5316464-0 Product Details

5-5316464-0 Overview

This product is packaged in a Receptacle, Center Strip Contacts box.An Tape & Reel (TR) case is utilized for packaging the product.Surface Mount indicates that the device is mounted.The product is a part of the Fine Mate Series.It is possible to ensure that Board Guide, Solder Retention remains constant during operation.This part must be mounted with a Surface Mount socket.Use it below 221°C.A minimum temperature of -22°C must be maintained for the operation of this device.
