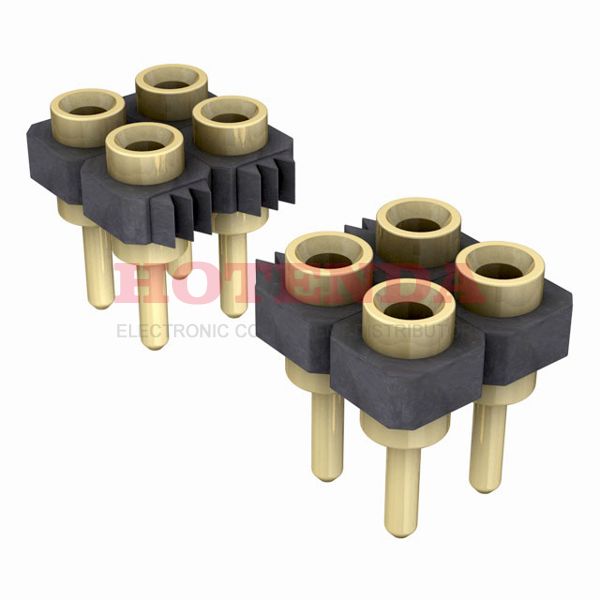

Name: SDL-107-G-10
Brand: Samtec Inc.
SKU: SDL-107-G-10
Availability: InStock

new-10%

SDL-107-G-10

Manufacturer part number:SDL-107-G-10

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Beryllium Copper Through Hole Tube Gold Liquid Crystal Polymer (LCP) 14 Positions Female Socket

Case Package:SOT-23

Datasheet:SDL-107-G-10 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polyester
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	SDL
Published	2008
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Discontinued
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	14
Number of Rows	2
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Straight
Depth	5.08mm
Insulation Height	0.122 3.10mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.108 2.75mm
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Housing Color	Black
Contact Resistance	10mOhm
Max Current Rating	1A
Length	17.78mm
Width	5.08mm
Contact Finish Thickness - Mating	10.0μin 0.25μm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SDL-107-G-10 Product Details

SDL-107-G-10 Overview

Packaging for this item is Receptacle.There is a mounting type of Through Hole for this device.It is necessary to use a Tube case for packaging the product.This product is part of the SDL Series.Moreover, there are a number of other features, including LOW PROFILE, to name just a few.Through Hole is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
