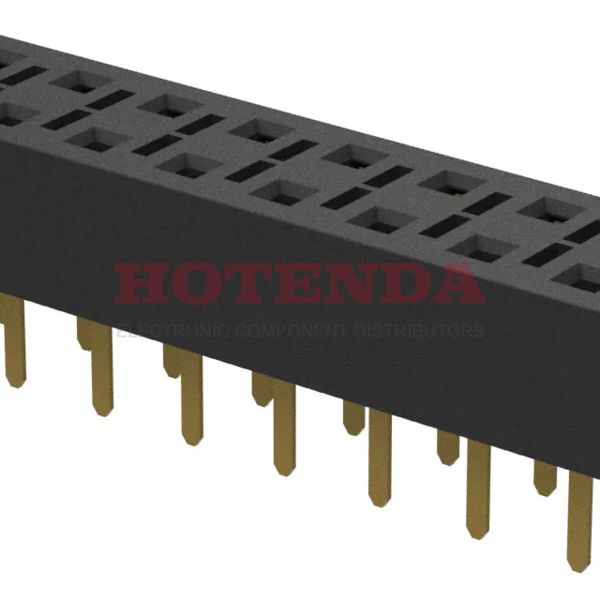

Name: HLE-114-02-G-DV-TE-P
Brand: Samtec Inc.
SKU: HLE-114-02-G-DV-TE-P
Availability: InStock

new-10%

HLE-114-02-G-DV-TE-P

Manufacturer part number:HLE-114-02-G-DV-TE-P

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderBeryllium CopperThrough HoleTubeGoldLiquid Crystal Polymer (LCP)28 PositionsFemale Socket

Case Package:SOT-23

Datasheet:HLE-114-02-G-DV-TE-P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	HLE
JESD-609 Code	e4
Feature	Pick and Place
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Receptacle
Number of Positions	28
Number of Rows	2
Gender	Female
Voltage - Rated	400VAC
Additional Feature	TOP ENTRY
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Insulation Height	0.138 3.50mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.120 3.05mm
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	3.00μin 0.076μm
RoHS Status	ROHS3 Compliant

HLE-114-02-G-DV-TE-P Product Details

HLE-114-02-G-DV-TE-P Overview

This product is packaged in a Receptacle cartonMounting type Through Hole is selected for the device.It's packaged in a Tube case.This is from the HLE Series.Additionally, there are other features such as TOP ENTRY.A number of benefits can be derived from the Pick and Place feature of this application.It is mounted by Through Hole.This device runs at -55°C~125°C operating temperature.
