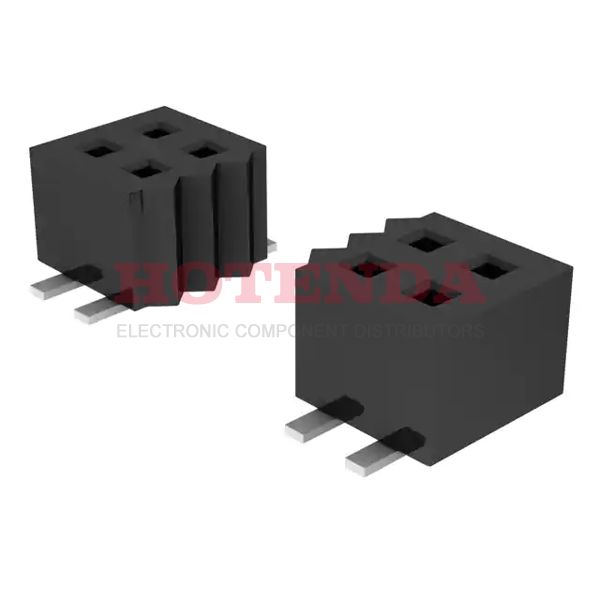

Name: CLP-107-02-L-D-BE-K
Brand: Samtec Inc.
SKU: CLP-107-02-L-D-BE-K
Availability: InStock

new-10%

CLP-107-02-L-D-BE-K

Manufacturer part number:CLP-107-02-L-D-BE-K

Manufacturer:Samtec Inc.

Description:CLP-107-02-L-D-BE-K datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:CLP-107-02-L-D-BE-K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	CLP
JESD-609 Code	e3
Feature	Pick and Place
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Bottom Entry
Number of Positions	14
Number of Rows	2
Gender	Female
Additional Feature	BOTTOM ENTRY, E.L.P., LOW PROFILE, TIGER CLAW
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Voltage - Rated DC	340V
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.3A per Contact
Total Number of Contacts	14
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Voltage - Rated AC	240V
Reliability	COMMERCIAL
Body Length or Diameter	0.367 inch
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Depth	0.09 inch
Mating Contact Pitch	0.05 inch
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CLP-107-02-L-D-BE-K Product Details

CLP-107-02-L-D-BE-K Overview

The packaging contains Receptacle, Bottom Entry.Mounting type is Surface Mount.Tube cases are used to package the product.It is part of the CLP Series of products.Additionally, there are features like BOTTOM ENTRY, E.L.P., LOW PROFILE, TIGER CLAW, just to name a few.Its Pick and Place feature makes it more powerful in a number of ways.-55°C~125°C Operating Temperature is the default operating temperature for the device.
