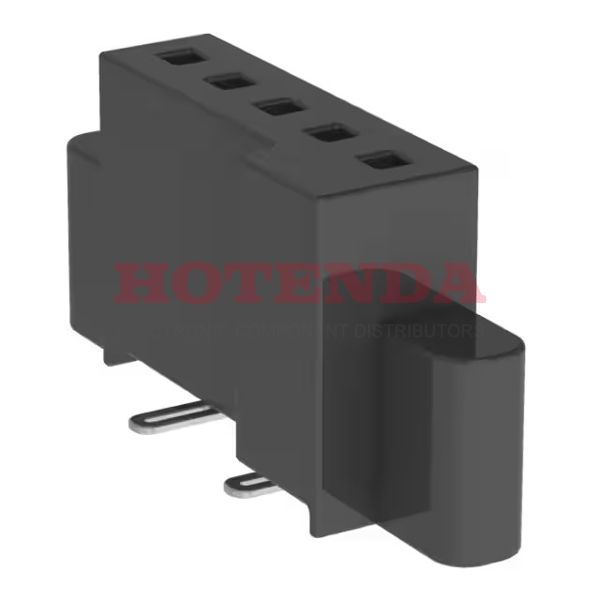

Name: SFM-105-L2-L-S-P
Brand: Samtec Inc.
SKU: SFM-105-L2-L-S-P
Availability: InStock

new-10%

SFM-105-L2-L-S-P

Manufacturer part number:SFM-105-L2-L-S-P

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderBeryllium CopperSurface MountBulkGoldLiquid Crystal Polymer (LCP)5 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFM-105-L2-L-S-P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	Tiger Eye™ SFM
JESD-609 Code	e3
Feature	Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	5
Number of Rows	1
Voltage - Rated	250VAC
Additional Feature	TIGER EYE SYSTEM, E.L.P.
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.2A per Contact
Total Number of Contacts	5
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	STAGGERED
Polarization Key	POLARIZED HOUSING
Insertion Force-Max	.3892 N
Withdrawl Force-Min	.278 N
Contact Finish Thickness - Mating	10.0μin 0.25μm
Stack Height (Mating)	6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFM-105-L2-L-S-P Product Details

SFM-105-L2-L-S-P Overview

The product comes in a package of Receptacle.Surface Mount is the mounting type of the device.An Bulk case is utilized for packaging the product.This product is from the Tiger Eye™ SFM Series.Furthermore, there are other features such as TIGER EYE SYSTEM, E.L.P., to name a few.Its Pick and Place feature renders it more powerful in many ways.-55°C~125°C Operating Temperature is the default.
