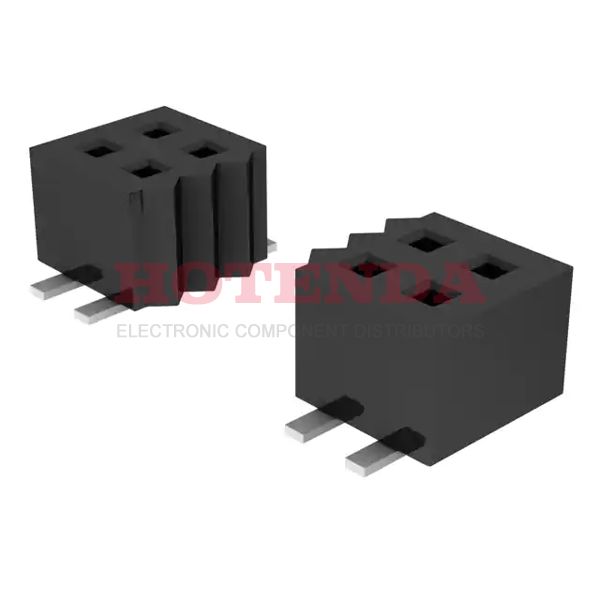

Name: CLP-150-02-S-D-P-TR
Brand: Samtec Inc.
SKU: CLP-150-02-S-D-P-TR
Availability: InStock

new-10%

CLP-150-02-S-D-P-TR

Manufacturer part number:CLP-150-02-S-D-P-TR

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 100 Positions Female Socket

Case Package:SOT-23

Datasheet:CLP-150-02-S-D-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	CLP
JESD-609 Code	e3
Feature	Pick and Place
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	100
Number of Rows	2
Gender	Female
Voltage - Rated	240VAC 330VDC
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3.3A per Contact
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

CLP-150-02-S-D-P-TR Product Details

CLP-150-02-S-D-P-TR Overview

Currently, it is packaged in Receptacle.The mounting type of the device is Surface Mount.A Tape & Reel (TR) case is used to package the product.A product of the CLP Series, it belongs to the range of products of that series.A number of features make the Pick and Place feature more powerful.-55°C~125°C Operating Temperature is the default operating temperature for the device.
