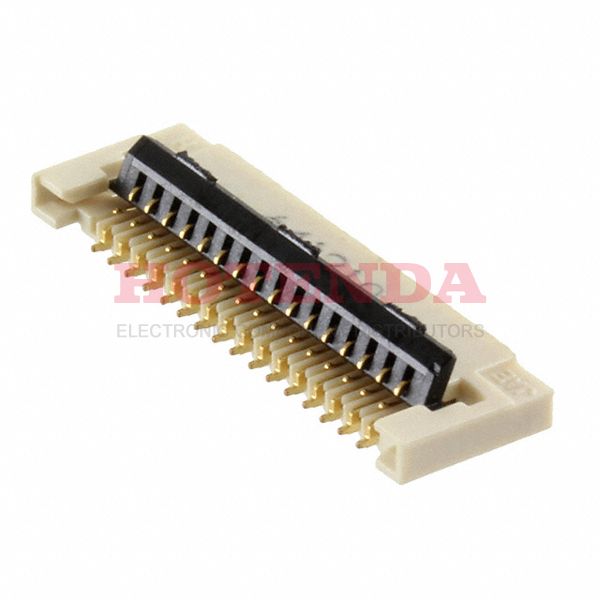

Name: FF0233SS1
Brand: JAE Electronics
SKU: FF0233SS1
Availability: InStock

new-10%

FF0233SS1

Manufacturer part number:FF0233SS1

Manufacturer:JAE Electronics

Description:FF0233SS1 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from JAE Electronics stock available on our website

Case Package:SOT-23

Datasheet:FF0233SS1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-40°C~85°C
Packaging	Tray
Published	2005
Series	FF02
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	33
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Voltage - Rated	50V
Current Rating (Amps)	0.35A per Contact
Pitch	0.012 0.30mm
Current Rating	350mA
Contact Finish	Gold
Lead Pitch	300μm
Number of Contacts	33
Housing Color	White
Wire/Cable Type	Straight
Mating Cycles	20
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight
Locking Feature	Flip Lock
Actuator Color	Black
Contact Finish Thickness	3.94μin 0.10μm
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.12mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FF0233SS1 Product Details

FF0233SS1 Overview

Mounting type Surface Mount, Right Angle is assigned to the device.Packaging is performed using a Tray case.The product is a member of the FF02 Series.The best time to use this device is when the temperature is below 85°C.Temperature must be -40°C to operate this device.This feature makes it more powerful in a number of ways due to its Zero Insertion Force (ZIF) feature.There's a Surface Mount on the part.There is no operating temperature for the device.
