Name: 0522072885
Brand: Molex
SKU: 0522072885
Availability: InStock

new-10%

0522072885

Manufacturer part number:0522072885

Manufacturer:Molex

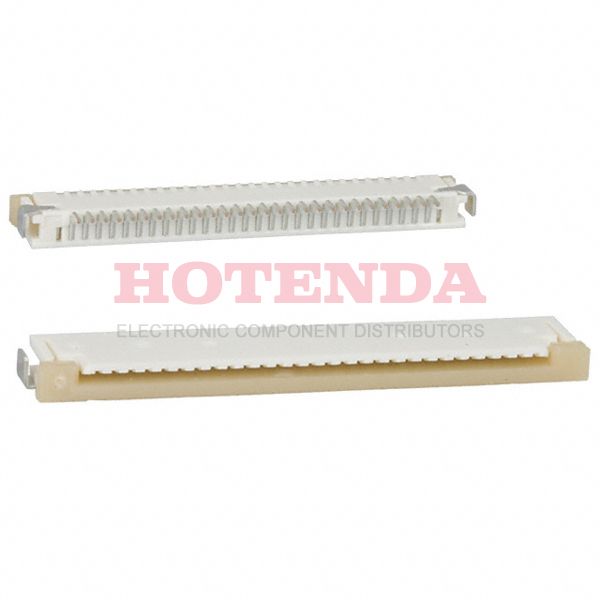

Description:0522072885 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0522072885 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA46), Nylon 4/6
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Series	Easy-On 52207
JESD-609 Code	e6
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	28
Number of Rows	1
Gender	Receptacle
Subcategory	Headers and Edge Type Connectors
Voltage - Rated DC	125V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.039 1.00mm
Total Number of Contacts	28
Orientation	Right Angle
Depth	7.5mm
Current Rating	1A
Reference Standard	UL, CSA
Contact Finish	Tin Bismuth
Reliability	COMMERCIAL
Number Of PCB Rows	1
Lead Pitch	1mm
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Rated Current (Signal)	1A
Contact Style	BELLOWED TYPE
Contact Resistance	20mOhm
Dielectric Withstanding Voltage	700VAC V
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	30
Insulator Color	NATURAL
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Tapered
Locking Feature	Slide Lock
Length	34.3mm
Contact Finish Thickness	39.4μin 1.00μm
Plating Thickness	39μin
Height Above Board	0.106 2.70mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

0522072885 Product Details

0522072885 Overview
