Name: FH26-61S-0.3SHW(05)
Brand: Hirose Electric Co Ltd
SKU: FH26-61S-0.3SHW(05)
Availability: InStock

new-10%

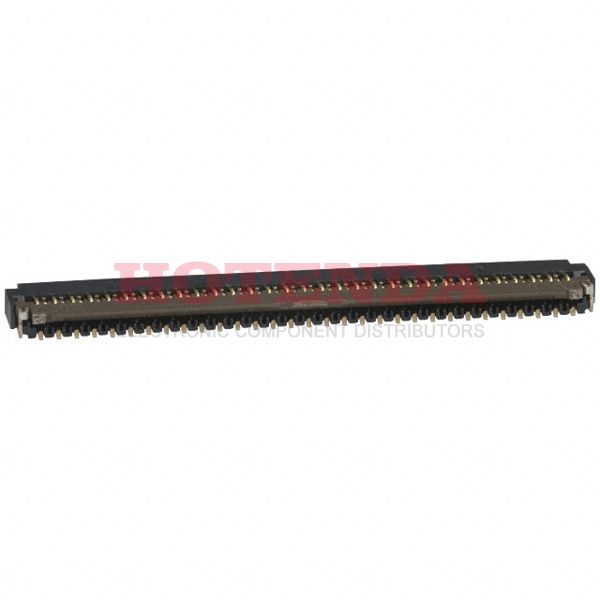

FH26-61S-0.3SHW(05)

Manufacturer part number:FH26-61S-0.3SHW(05)

Manufacturer:Hirose Electric Co Ltd

Description:FH26-61S-0.3SHW(05) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH26-61S-0.3SHW(05) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH26
JESD-609 Code	e4
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	61
Number of Rows	2
Gender	Receptacle
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.51
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Total Number of Contacts	61
Orientation	Straight
Depth	3.2mm
Current Rating	200mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
Lead Pitch	300μm
PCB Contact Pattern	STAGGERED
Body Breadth	0.039 inch
UL Flammability Code	94V-0
Housing Color	Black
Contact Style	BELLOWED TYPE
Contact Resistance	100mOhm
Insulation Resistance	50000000Ohm
Max Voltage Rating (AC)	30V
Max Current Rating	200mA
Dielectric Withstanding Voltage	90VAC V
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Brown
Length	19.8mm
Height Above Board	0.039 1.00mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FH26-61S-0.3SHW(05) Product Details

FH26-61S-0.3SHW(05) Overview

Mounting type Surface Mount, Right Angle is selected for the device.It's packaged in a Tape & Reel (TR) case.This product is in the FH26 Series.Furthermore, there are other features such as LOW PROFILE, to name a few.A number of features make the Zero Insertion Force (ZIF) feature more powerful.Mounting of the part is based on Surface Mount.Device runs at -55°C~85°C Operating Temperature.
