Name: HFW20R-1STE1LF
Brand: Amphenol ICC (FCI)
SKU: HFW20R-1STE1LF
Availability: InStock

new-10%

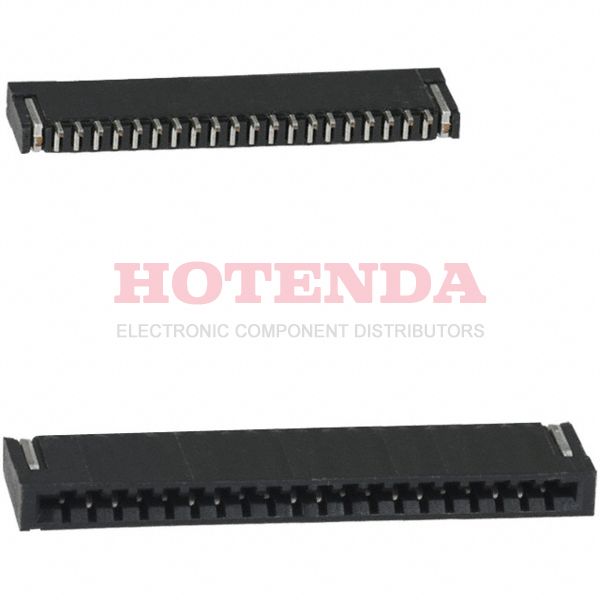

HFW20R-1STE1LF

Manufacturer part number:HFW20R-1STE1LF

Manufacturer:Amphenol ICC (FCI)

Description:HFW20R-1STE1LF datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:HFW20R-1STE1LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA6T), Nylon 6T, Glass Filled
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Series	HFW-R
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	20
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Number of Rows	1
Voltage - Rated	100V
Current Rating (Amps)	1A
Pitch	0.039 1.00mm
Orientation	Right Angle
Depth	6.5mm
Current Rating	1A
Contact Finish	Tin
Voltage - Rated AC	100V
Number of Contacts	20
Housing Color	Black
Contact Resistance	30mOhm
Insulation Resistance	500MOhm
Max Voltage Rating (AC)	100V
Wire/Cable Type	Straight
Max Voltage Rating (DC)	100V
Mating Cycles	30
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight or Tapered
Contact Location	Bottom
Length	22.6mm
Width	5.5mm
Height Above Board	0.075 1.90mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

HFW20R-1STE1LF Product Details

HFW20R-1STE1LF Overview

Surface Mount, Right Angle indicates that the device is mounted.It is necessary to use a Tape & Reel (TR) case for packaging the product.A product of the HFW-R Series, it belongs to the range of products of that series.Using it at a temperature below 105°C is ideal.Temperature must be -55°C to operate this device.In this case, Surface Mount mounts the part.The device runs in -55°C~105°C Operating Temperature.
