Name: FH18-39S-0.3SHW(55)
Brand: Hirose Electric Co Ltd
SKU: FH18-39S-0.3SHW(55)
Availability: InStock

new-10%

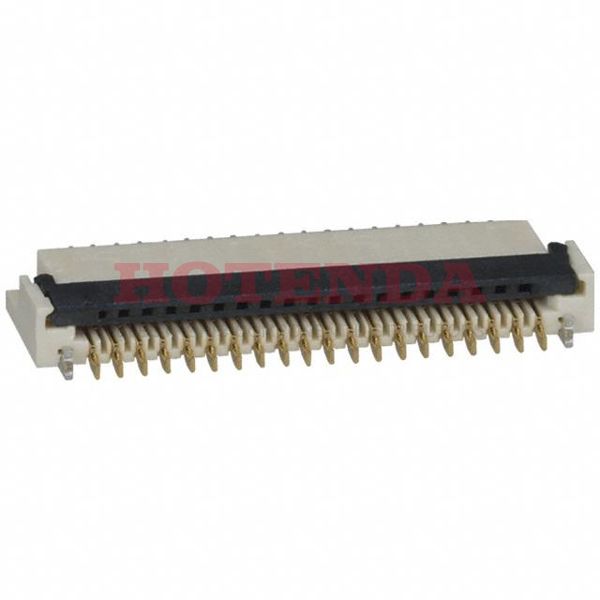

FH18-39S-0.3SHW(55)

Manufacturer part number:FH18-39S-0.3SHW(55)

Manufacturer:Hirose Electric Co Ltd

Description:FH18-39S-0.3SHW(55) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH18-39S-0.3SHW(55) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Series	FH18
Feature	Low Insertion Force (LIF), Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	39
Number of Rows	1
Subcategory	Headers and Edge Type Connectors
Current Rating (Amps)	0.15A
Pitch	0.012 0.30mm
Total Number of Contacts	39
Reach Compliance Code	unknown
Current Rating	150mA
Reference Standard	UL, CSA
Contact Finish	Gold
Voltage - Rated AC	30V
Reliability	COMMERCIAL
Body Length or Diameter	0.559 inch
Number Of PCB Rows	2
Lead Pitch	300μm
PCB Contact Pattern	STAGGERED
Body Breadth	0.07 inch
Housing Color	Beige
Body Depth	0.161 inch
Contact Style	BELLOWED TYPE
Insulation Resistance	50000000Ohm
Dielectric Withstanding Voltage	90VAC V
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Black
Height Above Board	0.071 1.80mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FH18-39S-0.3SHW(55) Product Details

FH18-39S-0.3SHW(55) Overview

This device is mounted in the Surface Mount, Right Angle position.We use a Tape & Reel (TR) case to package the product.This is from the FH18 Series.A number of aspects of its Low Insertion Force (LIF), Zero Insertion Force (ZIF) feature make it more powerful.You've got Surface Mount mounted on the part.In this case, the device operates at -40°C~85°C Operating Temperature.
