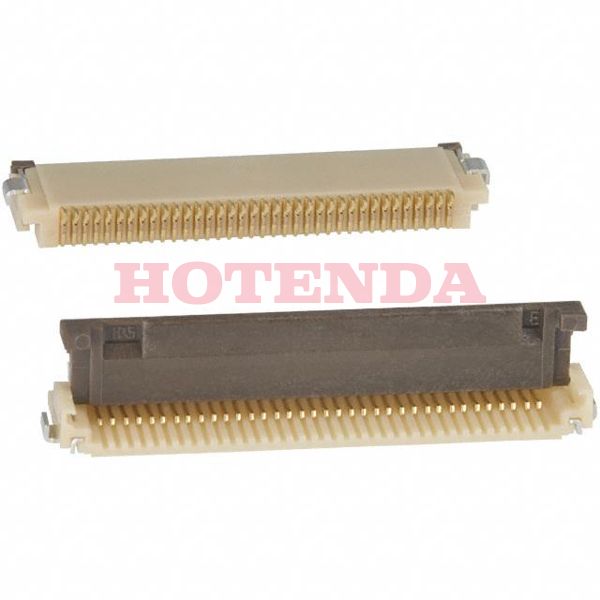

Name: FH12-36S-0.5SH(54)
Brand: Hirose Electric Co Ltd
SKU: FH12-36S-0.5SH(54)
Availability: InStock

new-10%

FH12-36S-0.5SH(54)

Manufacturer part number:FH12-36S-0.5SH(54)

Manufacturer:Hirose Electric Co Ltd

Description:FH12-36S-0.5SH(54) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH12-36S-0.5SH(54) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA), Nylon
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Series	FH12
JESD-609 Code	e4
Feature	Zero Insertion Force (ZIF)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	36
Number of Rows	1
Voltage - Rated	50V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	36
Reach Compliance Code	unknown
Current Rating	500mA
Contact Finish	Gold
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Beige
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight
Locking Feature	Flip Lock
Actuator Color	Brown
Height Above Board	0.079 2.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH12-36S-0.5SH(54) Product Details

FH12-36S-0.5SH(54) Overview

The product comes in a package of FFC/FPC CONNECTOR.Surface Mount, Right Angle is the mounting type for the device.It has been determined that a Tape & Reel (TR) case is necessary to package the product.A product of the FH12 Series, it belongs to the range of products of that series.A number of advantages are provided by its Zero Insertion Force (ZIF) feature.There is a mounting hole at Surface Mount.There is no operating temperature for the device.
