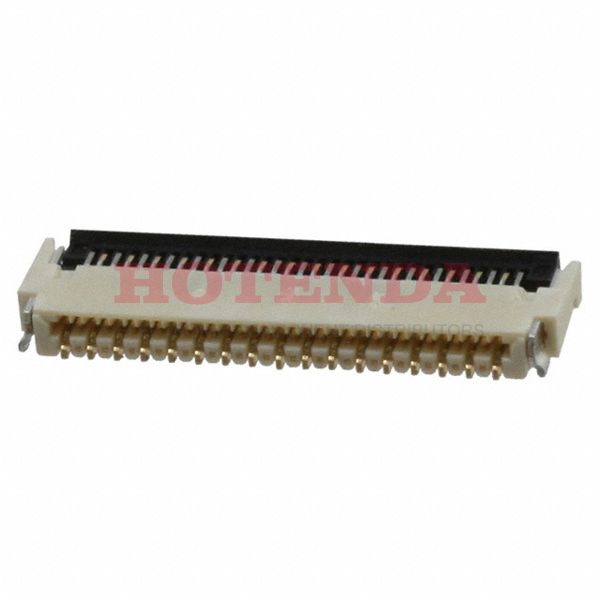

Name: 5025983391
Brand: Molex
SKU: 5025983391
Availability: InStock

new-10%

5025983391

Manufacturer part number:5025983391

Manufacturer:Molex

Description:5025983391 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:5025983391 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2012
Series	BackFlip, Easy-On 502598
Feature	Solder Retention
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	33
Voltage - Rated	50V
HTS Code	8536.69.40.51
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Contact Finish	Gold
Housing Color	White
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock, Backlock
Actuator Color	Black
Contact Finish Thickness	3.94μin 0.10μm
Height Above Board	0.045 1.14mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0, UL94 HB
RoHS Status	ROHS3 Compliant

5025983391 Product Details

5025983391 Overview

Surface Mount, Right Angle is the mount type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the BackFlip, Easy-On 502598 Series, it can be found in this category.A number of advantages are provided by its Solder Retention feature.-40°C~85°C Operating Temperature is the default operating temperature for the device.
