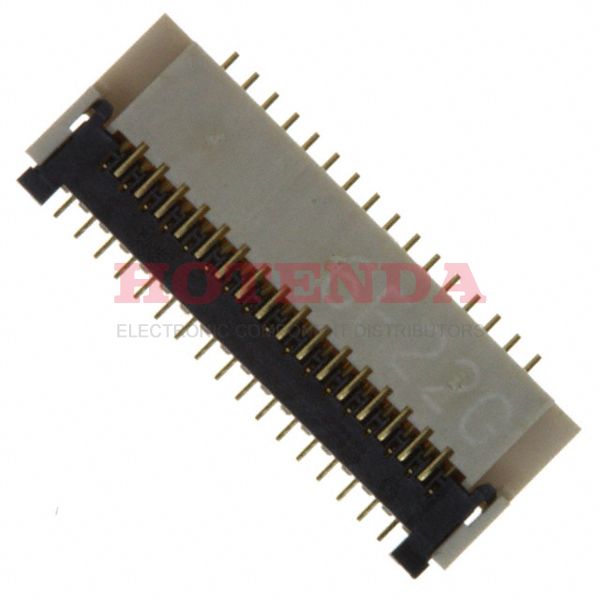

Name: FH23-33S-0.3SHW(10)
Brand: Hirose Electric Co Ltd
SKU: FH23-33S-0.3SHW(10)
Availability: InStock

new-10%

FH23-33S-0.3SHW(10)

Manufacturer part number:FH23-33S-0.3SHW(10)

Manufacturer:Hirose Electric Co Ltd

Description:FH23-33S-0.3SHW(10) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH23-33S-0.3SHW(10) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH23
Feature	Low Insertion Force (LIF)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	33
Voltage - Rated	30V
HTS Code	8536.69.40.51
Current Rating (Amps)	0.3A
Pitch	0.012 0.30mm
Reach Compliance Code	unknown
Current Rating	300mA
Contact Finish	Gold
Housing Color	Beige
Insulation Resistance	50MOhm
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Black
Height Above Board	0.049 1.25mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH23-33S-0.3SHW(10) Product Details

FH23-33S-0.3SHW(10) Overview

This device's mounting type is Surface Mount, Right Angle.An Tape & Reel (TR) case is utilized for packaging the product.The product is a member of the FH23 Series.A number of features make it more powerful because of its Low Insertion Force (LIF) feature.Surface Mount is used to mount the part.-55°C~85°C Operating Temperature is used by the device.
