Name: FH19SC-6S-0.5SH(05)
Brand: Hirose Electric Co Ltd
SKU: FH19SC-6S-0.5SH(05)
Availability: InStock

new-10%

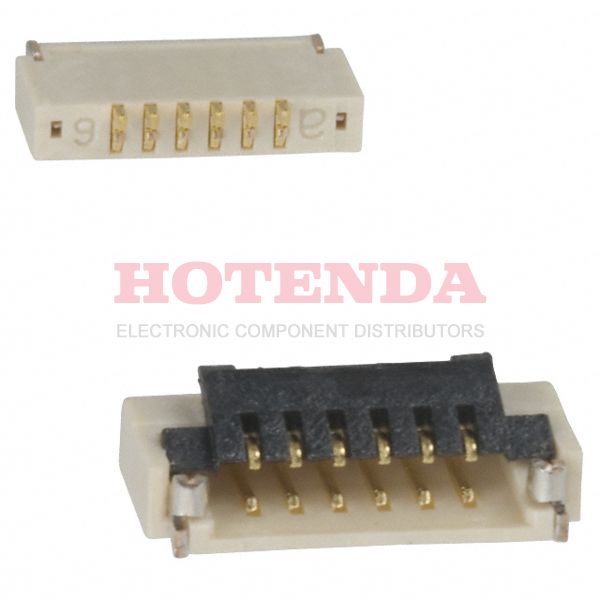

FH19SC-6S-0.5SH(05)

Manufacturer part number:FH19SC-6S-0.5SH(05)

Manufacturer:Hirose Electric Co Ltd

Description:FH19SC-6S-0.5SH(05) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH19SC-6S-0.5SH(05) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH19SC
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	6
Number of Rows	1
Voltage - Rated	50V
Subcategory	Headers and Edge Type Connectors
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	6
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	0.197 inch
Number Of PCB Rows	1
Lead Pitch	500μm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.037 inch
Housing Color	Beige
Body Depth	0.118 inch
Contact Style	SINGLE PRONG
Contact Resistance	100mOhm
Insulation Resistance	500000000Ohm
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Black
Plating Thickness	FLASH inch
Height Above Board	0.037 0.95mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FH19SC-6S-0.5SH(05) Product Details

FH19SC-6S-0.5SH(05) Overview

It comes in FFC/FPC CONNECTOR packaging.Surface Mount, Right Angle is the mounting type of the device.An orange Tape & Reel (TR) case is used to package the product.This is from the FH19SC Series.As a result of its Solder Retention, Zero Insertion Force (ZIF) feature, it possesses a great deal of power.Part Surface Mount is mounted to the part.Devices operate at -55°C~85°C operating temperatures.
