Name: FH16-60S-0.3SHW
Brand: Hirose Electric Co Ltd
SKU: FH16-60S-0.3SHW
Availability: InStock

new-10%

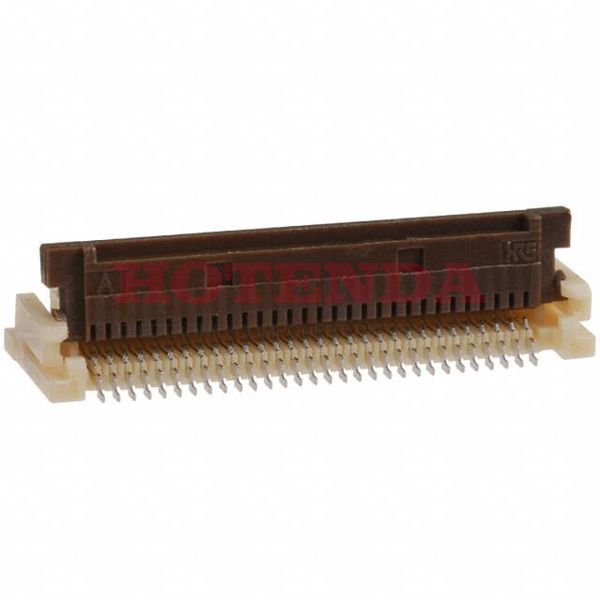

FH16-60S-0.3SHW

Manufacturer part number:FH16-60S-0.3SHW

Manufacturer:Hirose Electric Co Ltd

Description:FH16-60S-0.3SHW datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH16-60S-0.3SHW Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Polyamide (PA), Nylon
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-40°C~70°C
Packaging	Tape & Reel (TR)
Series	FH16
Feature	Pick and Place Cap, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	60
Number of Rows	1
Voltage - Rated	30V
Additional Feature	ZIF
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.15A
Pitch	0.012 0.30mm
Total Number of Contacts	60
Reach Compliance Code	unknown
Current Rating	150mA
Reference Standard	UL
Contact Finish	Tin-Lead
Reliability	COMMERCIAL
Body Length or Diameter	0.862 inch
Number Of PCB Rows	2
Lead Pitch	300μm
PCB Contact Pattern	STAGGERED
Mating Information	NO
Body Breadth	0.217 inch
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Beige
Body Depth	0.291 inch
Contact Style	BELLOWED TYPE
Contact Resistance	150mOhm
Insulation Resistance	500000000Ohm
PCB Contact Row Spacing	5.588 mm
Contact Pattern	STAGGERED
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	20
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tabbed
Locking Feature	Flip Lock
Actuator Color	Brown
Height Above Board	0.118 3.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

FH16-60S-0.3SHW Product Details

FH16-60S-0.3SHW Overview

Surface Mount, Right Angle is the mounting type for the device.It is necessary to use a Tape & Reel (TR) case for packaging the product.FH16 Series product.Also, there's ZIF, to name a few.This feature renders it more powerful in a number of ways because of its Pick and Place Cap, Zero Insertion Force (ZIF) feature.In this case, Surface Mount mounts the part.The device runs in -40°C~70°C Operating Temperature.
