Name: FH12-6S-1SH
Brand: Hirose Electric Co Ltd
SKU: FH12-6S-1SH
Availability: InStock

new-10%

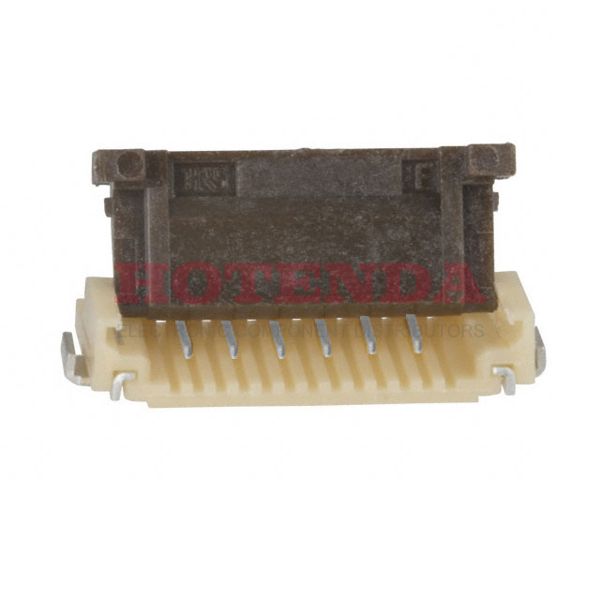

FH12-6S-1SH

Manufacturer part number:FH12-6S-1SH

Manufacturer:Hirose Electric Co Ltd

Description:FH12-6S-1SH datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH12-6S-1SH Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Lead, Tin
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA), Nylon
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2003
Series	FH12
JESD-609 Code	e0
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	6
Number of Rows	1
Voltage - Rated	50V
Additional Feature	ZIF
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.039 1.00mm
Total Number of Contacts	6
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Tin-Lead
Reliability	COMMERCIAL
Body Length or Diameter	0.417 inch
Number Of PCB Rows	1
Lead Pitch	1mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.079 inch
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Beige
Body Depth	0.22 inch
Contact Style	BELLOWED TYPE
Contact Resistance	50mOhm
Insulation Resistance	500000000Ohm
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight
Locking Feature	Flip Lock
Actuator Color	Brown
Height Above Board	0.079 2.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

FH12-6S-1SH Product Details

FH12-6S-1SH Overview

The packaging contains FFC/FPC CONNECTOR.This device is mounted in the Surface Mount, Right Angle position.Packaging is performed using a Tape & Reel (TR) case.Specifically, it is one of the products in the FH12 Series.Besides that, there's also ZIF, to name a few.Its Solder Retention, Zero Insertion Force (ZIF) feature renders it more powerful in many ways.Surface Mount is the mounting point for the part.The device is operating at -40°C~85°C Operating Temperature.
