Name: FH19SC-24S-0.5SH(05)
Brand: Hirose Electric Co Ltd
SKU: FH19SC-24S-0.5SH(05)
Availability: InStock

new-10%

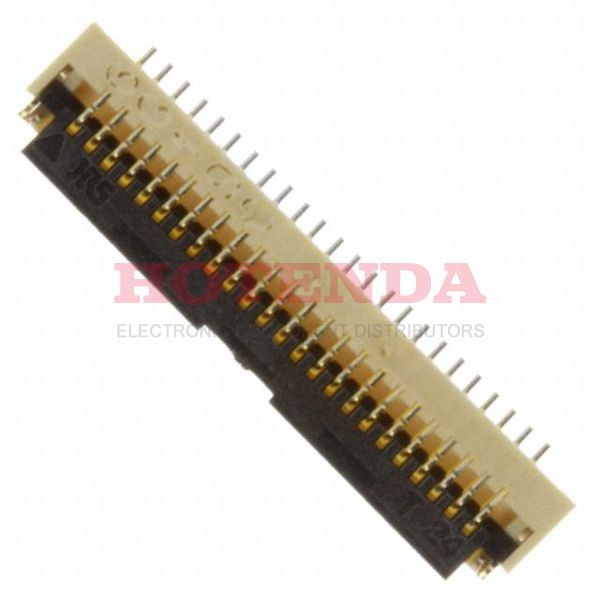

FH19SC-24S-0.5SH(05)

Manufacturer part number:FH19SC-24S-0.5SH(05)

Manufacturer:Hirose Electric Co Ltd

Description:FH19SC-24S-0.5SH(05) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH19SC-24S-0.5SH(05) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH19SC
JESD-609 Code	e4
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	24
Number of Rows	1
Gender	Receptacle
Additional Feature	ZIF, LOW PROFILE
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	24
Orientation	Right Angle
Depth	3.5mm
Current Rating	500mA
Reference Standard	UL
Contact Finish	Gold
Voltage - Rated AC	50V
Reliability	COMMERCIAL
Number Of PCB Rows	1
Lead Pitch	500μm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.037 inch
UL Flammability Code	94V-0
Housing Color	Beige
Contact Style	SINGLE PRONG
Contact Resistance	100mOhm
Insulation Resistance	100MOhm
Max Voltage Rating (AC)	50V
Max Current Rating	500mA
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Black
Length	14mm
Plating Thickness	FLASH inch
Height Above Board	0.037 0.95mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FH19SC-24S-0.5SH(05) Product Details

FH19SC-24S-0.5SH(05) Overview

It comes in FFC/FPC CONNECTOR packaging.There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).It is part of the FH19SC Series of products.In addition, there are other features, such as ZIF, LOW PROFILE, to mention just a few.This feature makes it more powerful in a number of ways due to its Solder Retention, Zero Insertion Force (ZIF) feature.It's mounted by Surface Mount.-55°C~85°C Operating Temperature is the default operating temperature for the device.
