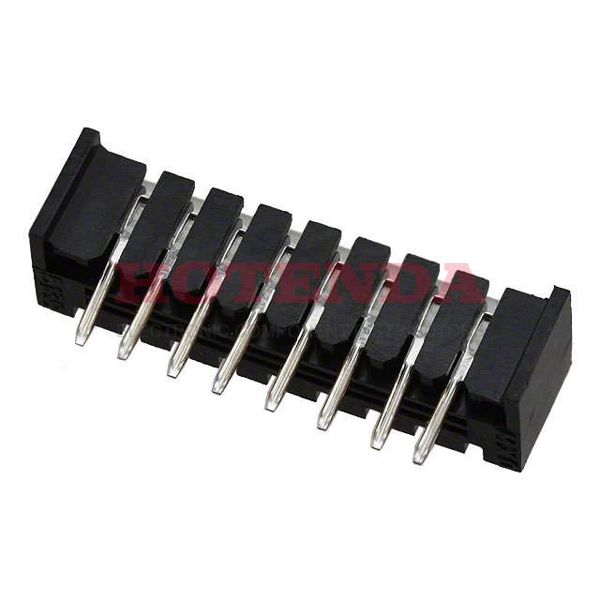

Name: 0022023083
Brand: Molex
SKU: 0022023083
Availability: InStock

new-10%

0022023083

Manufacturer part number:0022023083

Manufacturer:Molex

Description:0022023083 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0022023083 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyester
Operating Temperature	-40°C~105°C
Packaging	Tray
Series	5229
Feature	Low Insertion Force (LIF)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	8
Number of Rows	1
Gender	Receptacle
Additional Feature	LOW PROFILE
Voltage - Rated DC	200V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.100 2.54mm
Total Number of Contacts	8
Orientation	Vertical
Depth	6.6mm
Current Rating	1A
Contact Finish	Tin
Lead Pitch	2.54mm
UL Flammability Code	94V-0
Contact Resistance	20mOhm
Number of Circuits	7
Flat Flex Type	FFC
Connector/Contact Type	Contacts, Vertical - 1 Sided
Cable End Type	Straight
Length	25.18mm
Height Above Board	0.256 6.50mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

0022023083 Product Details

0022023083 Overview

The mounting type of the device is Through Hole.We package the product with a Tray case.There is a product in the 5229 Series.Furthermore, there are other features available, such as LOW PROFILE, to name a few.Several benefits come from the Low Insertion Force (LIF) feature.Mounting of the part is based on Through Hole.7 circuits make up the part.-40°C~105°C Operating Temperature is the default.
