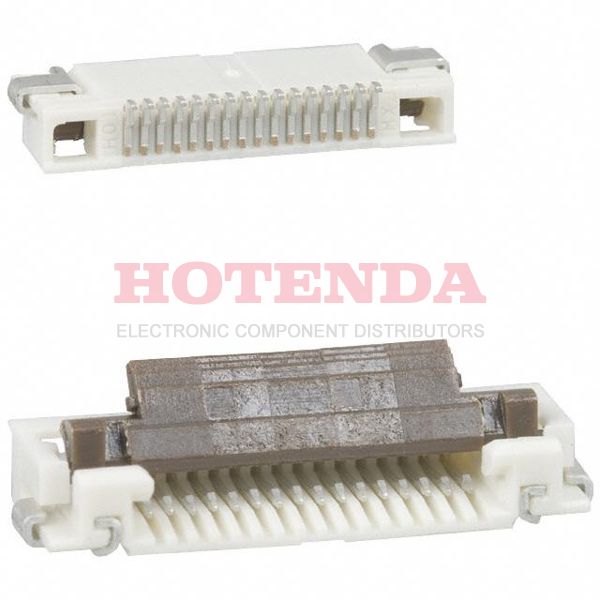

Name: 0528921695
Brand: Molex
SKU: 0528921695
Availability: InStock

new-10%

0528921695

Manufacturer part number:0528921695

Manufacturer:Molex

Description:0528921695 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0528921695 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA46), Nylon 4/6
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature	-25°C~85°C
Packaging	Tape & Reel (TR)
Series	Easy-On 52892
JESD-609 Code	e6
Feature	Solder Retention, Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	16
Number of Rows	1
Voltage - Rated	50V
Additional Feature	ZIF
HTS Code	8536.69.40.51
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	16
Contact Finish	Tin Bismuth
Contact Gender	FEMALE
UL Flammability Code	94V-0
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight, Tapered
Locking Feature	Flip Lock
Height Above Board	0.079 2.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0528921695 Product Details

0528921695 Overview

This product is packaged in a FFC/FPC CONNECTOR carton.This device is mounted in the Surface Mount, Right Angle position.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the Easy-On 52892 Series of products.In addition, there are other features, such as ZIF, to mention just a few.In many ways, its Solder Retention, Zero Insertion Force (ZIF) feature makes it more powerful.Devices operate at -25°C~85°C operating temperatures.
