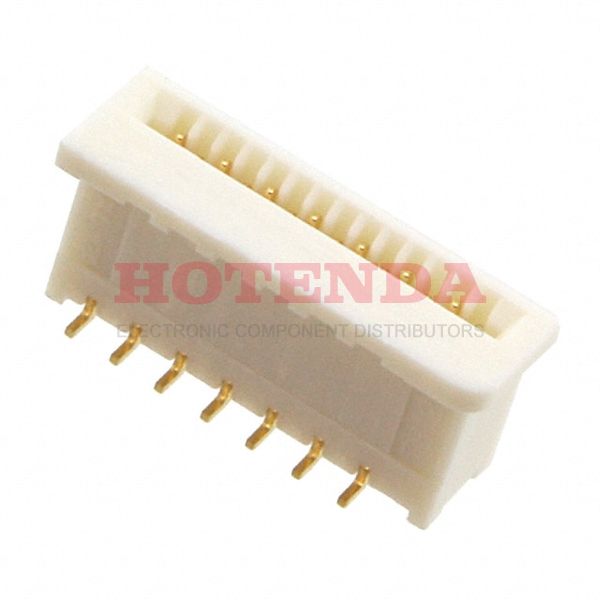

Name: 0781271148
Brand: Molex
SKU: 0781271148
Availability: InStock

new-10%

0781271148

Manufacturer part number:0781271148

Manufacturer:Molex

Description:0781271148 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0781271148 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Series	78127
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	14
Number of Rows	1
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	14
Orientation	Vertical
Depth	2.95mm
Current Rating	500mA
Contact Finish	Gold
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Natural
Contact Resistance	30mOhm
Number of Circuits	13
Max Voltage Rating (AC)	50V
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Vertical - 1 Sided
Cable End Type	Tapered
Length	9.1mm
Contact Finish Thickness	3.94μin 0.10μm
Height Above Board	0.161 4.10mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

0781271148 Product Details

0781271148 Overview

The product comes in a package of FFC/FPC CONNECTOR.There is a Surface Mount mounting type for the device.To package the product, a Tape & Reel (TR) case is used.A product of the 78127 Series, it belongs to the range of products of that series.In this case, Surface Mount mounts the part.It consists of circuits with a 13 value.Operating temperature is set to -40°C~85°C.
