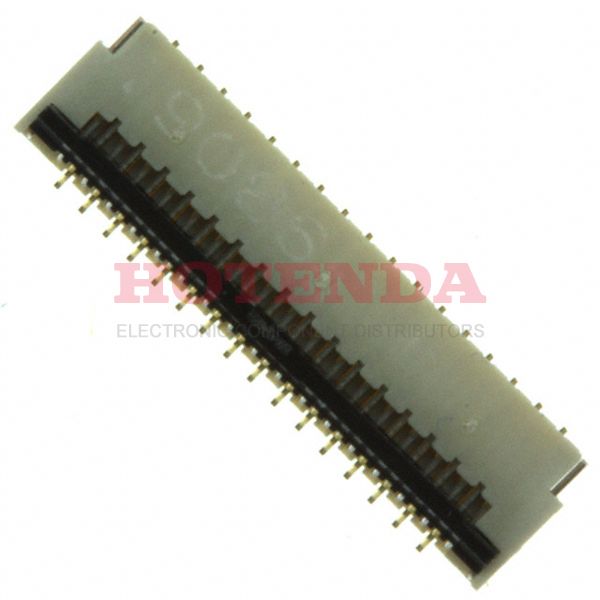

Name: FH35-33S-0.3SHW(99)
Brand: Hirose Electric Co Ltd
SKU: FH35-33S-0.3SHW(99)
Availability: InStock

new-10%

FH35-33S-0.3SHW(99)

Manufacturer part number:FH35-33S-0.3SHW(99)

Manufacturer:Hirose Electric Co Ltd

Description:FH35-33S-0.3SHW(99) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH35-33S-0.3SHW(99) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH35
JESD-609 Code	e4
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	33
Number of Rows	2
Voltage - Rated	30V
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.51
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Total Number of Contacts	33
Reach Compliance Code	unknown
Current Rating	200mA
Contact Finish	Gold
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Beige
Insulation Resistance	50MOhm
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Tapered
Locking Feature	Rotary Lock, Backlock
Actuator Color	Black
Height Above Board	0.035 0.88mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH35-33S-0.3SHW(99) Product Details

FH35-33S-0.3SHW(99) Overview

The device's mounting type is Surface Mount, Right Angle.It has been determined that a Tape & Reel (TR) case is necessary to package the product.The product is a part of the FH35 Series.In addition, there are other features such as LOW PROFILE, to mention only a few.In many ways, Zero Insertion Force (ZIF) makes it more powerful.There is a Surface Mount mount on the part.-55°C~85°C Operating Temperature is what the device runs at.
