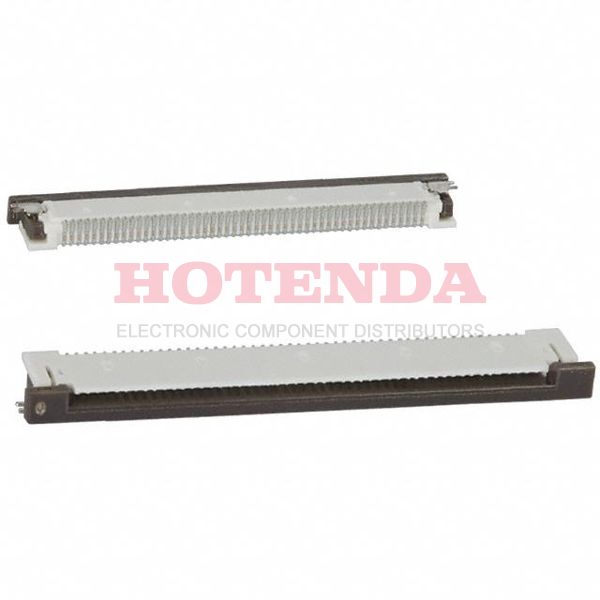

Name: 0541045096
Brand: Molex
SKU: 0541045096
Availability: InStock

new-10%

0541045096

Manufacturer part number:0541045096

Manufacturer:Molex

Description:0541045096 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0541045096 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA46), Nylon 4/6
Mounting Option 1	LOCKING
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Board Mounting Option	FITTING NAIL
Operating Temperature	-20°C~85°C
Packaging	Tape & Reel (TR)
Series	54104
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	50
Number of Rows	1
Voltage - Rated	50V
HTS Code	8536.69.40.51
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	50
Reference Standard	UL
Contact Finish	Tin Bismuth
Reliability	COMMERCIAL
Body Length or Diameter	1.154 inch
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.079 inch
Contact Gender	FEMALE
UL Flammability Code	94V-0
Body Depth	0.22 inch
Contact Style	SINGLE PRONG
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight, Tapered
Locking Feature	Slide Lock
Height Above Board	0.079 2.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0541045096 Product Details

0541045096 Overview

A FFC/FPC CONNECTOR package is included with it.Surface Mount, Right Angle is the mount type.We use a Tape & Reel (TR) case to package the product.Among the products in the 54104 Series, it is one of the most popular.It is more powerful in many ways due to its Solder Retention, Zero Insertion Force (ZIF) feature.It runs at -20°C~85°C Operating Temperature.
