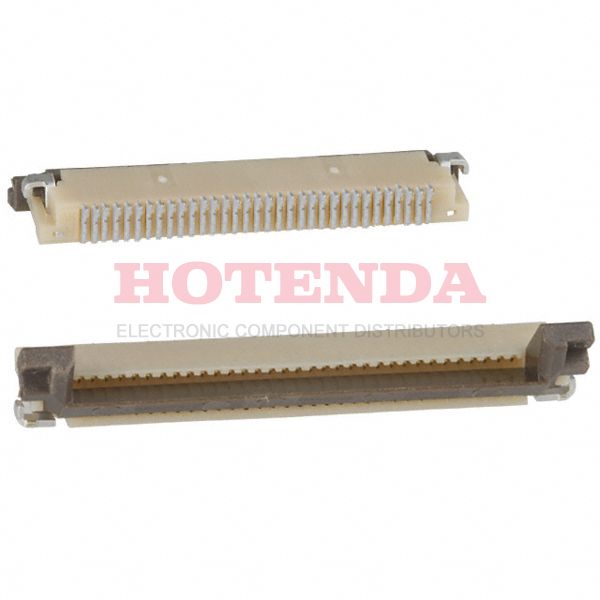

Name: FH12A-33S-0.5SH
Brand: Hirose Electric Co Ltd
SKU: FH12A-33S-0.5SH
Availability: InStock

new-10%

FH12A-33S-0.5SH

Manufacturer part number:FH12A-33S-0.5SH

Manufacturer:Hirose Electric Co Ltd

Description:FH12A-33S-0.5SH datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH12A-33S-0.5SH Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Lead, Tin
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA), Nylon
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Series	FH12
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	33
Number of Rows	1
Voltage - Rated	50V
Additional Feature	TOP CONTACT TYPE
HTS Code	8536.69.40.51
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	33
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Tin-Lead
Reliability	COMMERCIAL
Body Length or Diameter	0.827 inch
Number Of PCB Rows	1
Lead Pitch	500μm
PCB Contact Pattern	RECTANGULAR
Mating Information	NO
Body Breadth	0.094 inch
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Beige
Body Depth	0.22 inch
Contact Style	BELLOWED TYPE
Contact Resistance	50mOhm
Insulation Resistance	500000000Ohm
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight
Locking Feature	Flip Lock
Actuator Color	Brown
Height Above Board	0.079 2.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

FH12A-33S-0.5SH Product Details

FH12A-33S-0.5SH Overview

It comes in a FFC/FPC CONNECTOR package.This device has a Surface Mount, Right Angle mounting type.We pack the product in a Tape & Reel (TR) case.Product number FH12 belongs to the FH12 Series.Further, there are features such as TOP CONTACT TYPE, to name only a few.A number of features make the Zero Insertion Force (ZIF) feature more powerful.There is a mounting hole at Surface Mount.As a result, the device runs at -40°C~85°C Operating Temperature.
