Name: XF2J-2824-11A
Brand: Omron Electronics Inc-EMC Div
SKU: XF2J-2824-11A
Availability: InStock

new-10%

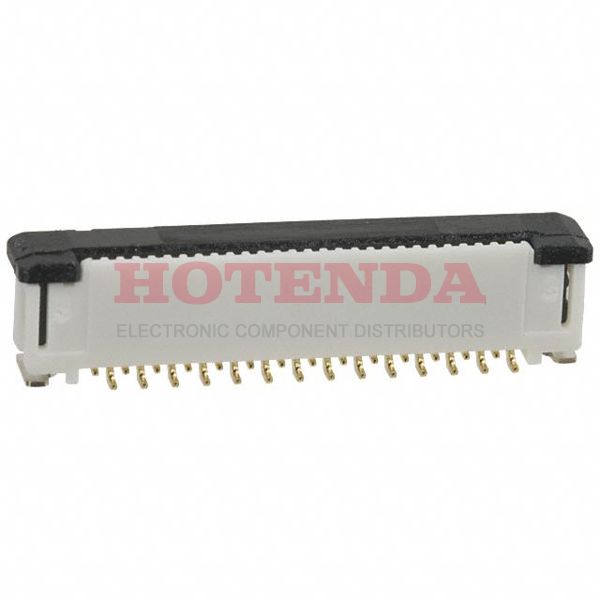

XF2J-2824-11A

Manufacturer part number:XF2J-2824-11A

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF2J-2824-11A datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2J-2824-11A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyamide (PA46), Nylon 4/6
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Published	2005
Series	XF2J
JESD-609 Code	e4
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	28
Number of Rows	1
Gender	Receptacle
Additional Feature	LOW PROFILE, ZIF
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	28
Orientation	Straight
Depth	2.95mm
Current Rating	500mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
Lead Pitch	500μm
PCB Contact Pattern	STAGGERED
UL Flammability Code	94V-0
Housing Color	Natural
Contact Style	BELLOWED TYPE
Contact Resistance	30mOhm
Max Voltage Rating (AC)	50V
Max Current Rating	500mA
Dielectric Withstanding Voltage	250VAC V
Max Voltage Rating (DC)	5.05kV
Contact Pattern	RECTANGULAR
Mating Cycles	30
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Vertical - 1 Sided
Cable End Type	Tapered
Locking Feature	Slide Lock
Actuator Color	Black
Contact Location	Top
Length	18.5mm
Contact Finish Thickness	5.90μin 0.150μm
Height Above Board	0.163 4.15mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

XF2J-2824-11A Product Details

XF2J-2824-11A Overview

There is a mounting type of Surface Mount for this device.Packaging for the product is carried out via a Tape & Reel (TR) case.There is a product in the XF2J Series.Additionally, there are features like LOW PROFILE, ZIF, just to name a few.A number of features make it more powerful because of its Zero Insertion Force (ZIF) feature.Mounting of the part is based on Surface Mount.Operating temperature is -30°C~85°C.
