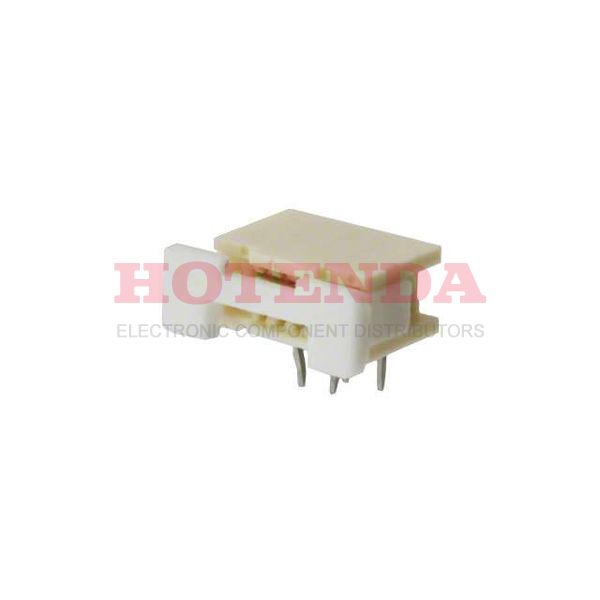

Name: 0520430419
Brand: Molex
SKU: 0520430419
Availability: InStock

new-10%

0520430419

Manufacturer part number:0520430419

Manufacturer:Molex

Description:0520430419 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0520430419 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Through Hole, Right Angle
Housing Material	Polyamide (PA66), Nylon 6/6
Actuator Material	Polyester
Operating Temperature	-20°C~80°C
Packaging	Tray
Series	52043
JESD-609 Code	e6
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin
ECCN Code	EAR99
Number of Positions	4
Number of Rows	1
Voltage - Rated	50V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.039 1.00mm
Total Number of Contacts	4
Contact Finish	Tin Bismuth
Contact Gender	FEMALE
Body/Shell Style	RECEPTACLE
Mating Cycles	30
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Slide Lock
Height Above Board	0.165 4.20mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0520430419 Product Details

0520430419 Overview

Mounting type Through Hole, Right Angle is assigned to the device.Packaging for the product is carried out via a Tray case.A product of the 52043 Series, it belongs to the range of products of that series.In many ways, its Zero Insertion Force (ZIF) feature makes it more powerful.It operates at an operating temperature of -20°C~80°C.
