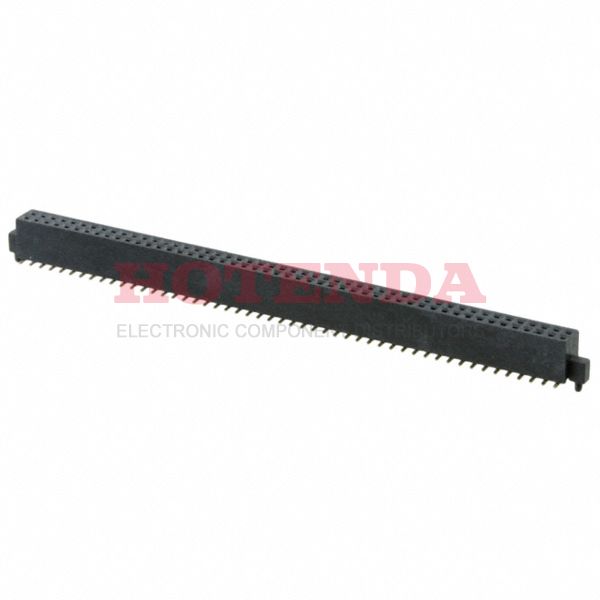

Name: M50-4305045
Brand: Harwin Inc.
SKU: M50-4305045
Availability: InStock

new-10%

M50-4305045

Manufacturer part number:M50-4305045

Manufacturer:Harwin Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTubeGoldLiquid Crystal Polymer (LCP)100 PositionsFemale Socket

Case Package:SOT-23

Datasheet:M50-4305045 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-40°C~105°C
Packaging	Tube
Published	2009
Series	Archer M50
JESD-609 Code	e4
Feature	Board Guide
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	100
Applications	General Purpose, Medical, Telecommunications
Number of Rows	2
Additional Feature	POLARIZED
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Current Rating (Amps)	1A
Total Number of Contacts	100
Insulation Height	0.181 4.60mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	Female
UL Flammability Code	94V-0
Body Depth	0.181 inch
Insulation Resistance	5000000000Ohm
Mating Contact Pitch	0.05 inch
Polarization Key	POLARIZED HOUSING
Stack Height (Mating)	6mm 6.5mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

M50-4305045 Product Details

M50-4305045 Overview

Packaging is Receptacle.Surface Mount is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the Archer M50 Series, it can be found in this category.There are also other features such as POLARIZED, to name only a few.A possible application of the device would be General Purpose, Medical, Telecommunications.With its Board Guide feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.The device is operating at -40°C~105°C Operating Temperature.
