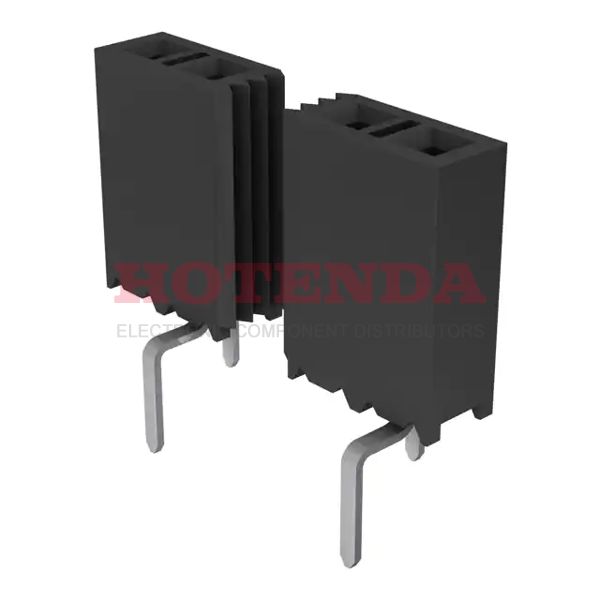

Name: BCS-110-SM-S-PE
Brand: Samtec Inc.
SKU: BCS-110-SM-S-PE
Availability: InStock

new-10%

BCS-110-SM-S-PE

Manufacturer part number:BCS-110-SM-S-PE

Manufacturer:Samtec Inc.

Description:1 RowsReceptacle, Pass ThroughSolderPhosphor BronzeThrough HoleTubeGoldLiquid Crystal Polymer (LCP), Glass Filled10 PositionsFemale Socket

Case Package:SOT-23

Datasheet:BCS-110-SM-S-PE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2015
Series	Tiger Claw™ BCS
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Pass Through
Number of Positions	10
Number of Rows	1
Gender	Female
Voltage - Rated	475VAC
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.6A per Contact
Terminal Pitch	2.54mm
Insulation Height	0.290 7.37mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.128 3.25mm
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

BCS-110-SM-S-PE Product Details

BCS-110-SM-S-PE Overview

Packaging for this item is Receptacle, Pass Through.Through Hole is the type of mounting for the device.A Tube case is used for packaging.As a product of the Tiger Claw™ BCS Series, it can be found in this category.By Through Hole it's mounted.Operating temperature is -55°C~125°C.
