Name: PPPC321KFXC
Brand: Sullins Connector Solutions
SKU: PPPC321KFXC
Availability: InStock

new-10%

PPPC321KFXC

Manufacturer part number:PPPC321KFXC

Manufacturer:Sullins Connector Solutions

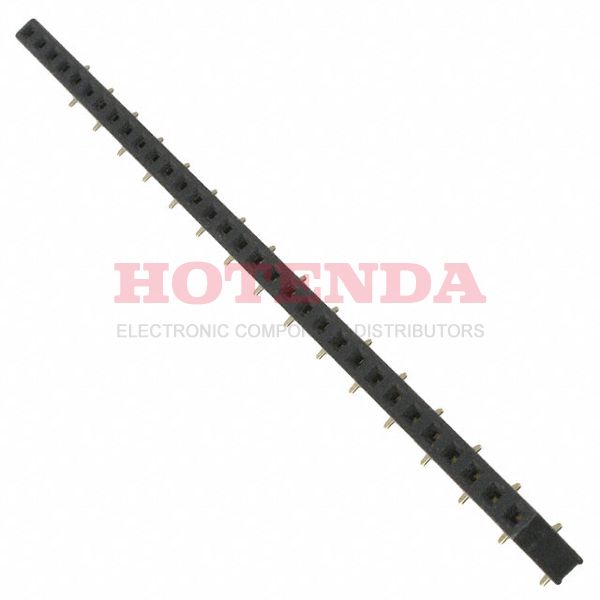

Description:1 Rows Header, Top or Bottom Entry Solder Phosphor Bronze Surface Mount Bulk Gold Polyester 32 Positions Female Socket

Case Package:SOT-23

Datasheet:PPPC321KFXC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Polyester
Housing Material	Plastic
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2004
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Top or Bottom Entry
Number of Positions	32
Number of Rows	1
Voltage - Rated	250V
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Total Number of Contacts	32
Terminal Pitch	5.08mm
Insulation Height	0.280 7.10mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Body Breadth	0.098 inch
Contact Resistance	20mOhm
Insulation Resistance	5000000000Ohm
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	500VAC V
PCB Contact Row Spacing	3.302 mm
Height	7.1mm
Length	81.3mm
Width	2.5mm
Contact Finish Thickness - Mating	Flash
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

PPPC321KFXC Product Details

PPPC321KFXC Overview

The product comes in a package of Header, Top or Bottom Entry.Surface Mount is the type of mounting for the device.To package the product, a Bulk case is used.It is mounted by Surface Mount.It operates at an operating temperature of -40°C~105°C.
