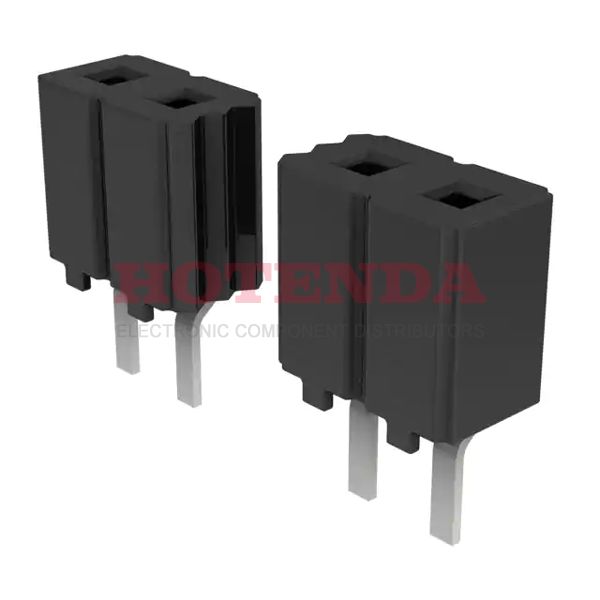

Name: CES-131-02-S-S
Brand: Samtec Inc.
SKU: CES-131-02-S-S
Availability: InStock

new-10%

CES-131-02-S-S

Manufacturer part number:CES-131-02-S-S

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderPhosphor BronzeThrough HoleBulkGoldPolybutylene Terephthalate (PBT)31 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CES-131-02-S-S Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	CES
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	31
Number of Rows	1
Gender	Female
Additional Feature	WITH LOW PROFILE
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Terminal Pitch	2.54mm
Insulation Height	0.200 5.08mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Contact Length - Post	0.223 5.66mm
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Body Depth	0.24 inch
Rated Current (Signal)	1A
Polarization Key	POLARIZED HOUSING
Insertion Force-Max	2.224 N
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

CES-131-02-S-S Product Details

CES-131-02-S-S Overview

Packaging is in the form of Receptacle.Through Hole is the mounting type of the device.Packaging for the product is carried out via a Bulk case.The product is part of the CES Series.Besides that, there's also WITH LOW PROFILE, to name a few.You've got Through Hole mounted on the part.In this case, the device operates at -55°C~125°C Operating Temperature.
