Name: BCS-122-L-D-HE-021
Brand: Samtec Inc.
SKU: BCS-122-L-D-HE-021
Availability: InStock

new-10%

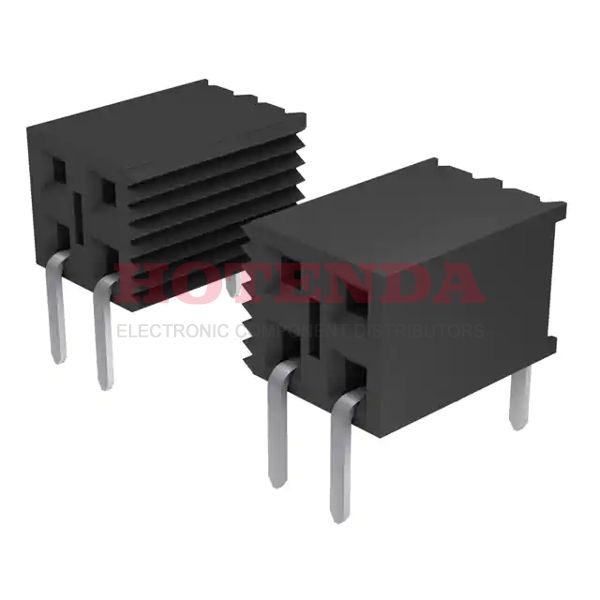

BCS-122-L-D-HE-021

Manufacturer part number:BCS-122-L-D-HE-021

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Tube Gold Liquid Crystal Polymer (LCP), Glass Filled 44 Positions Female Socket

Case Package:SOT-23

Datasheet:BCS-122-L-D-HE-021 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2016
Series	Tiger Claw™ BCS
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	44
Number of Rows	2
Gender	Female
Voltage - Rated	475VAC
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	4.6A per Contact
Insulation Height	0.210 5.33mm
Style	Board to Board
Number of Positions Loaded	43
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.125 3.18mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Contact Resistance	10mOhm
Insulation Resistance	5000000000Ohm
Mating Contact Pitch	0.1 inch
Polarization Key	POLAR PIN POSITION
Dielectric Withstanding Voltage	375VAC V
PCB Contact Row Spacing	7.874 mm
Durability	500 Cycles
Insertion Force-Max	1.39 N
Withdrawl Force-Min	.834 N
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

BCS-122-L-D-HE-021 Product Details

BCS-122-L-D-HE-021 Overview

Packaging for this item is Receptacle.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Tube case for packaging the product.This product is part of the Tiger Claw™ BCS Series.Through Hole is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
