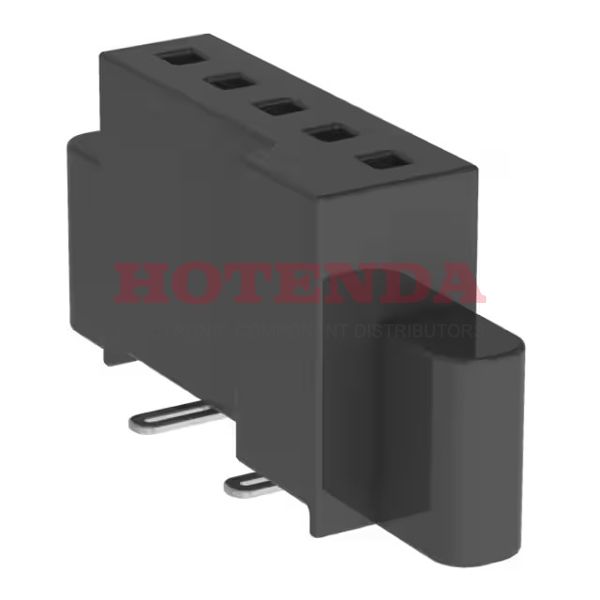

Name: SFM-105-L2-L-S-TR
Brand: Samtec Inc.
SKU: SFM-105-L2-L-S-TR
Availability: InStock

new-10%

SFM-105-L2-L-S-TR

Manufacturer part number:SFM-105-L2-L-S-TR

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderBeryllium CopperSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)5 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFM-105-L2-L-S-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	Tiger Eye™ SFM
JESD-609 Code	e3
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	5
Number of Rows	1
Gender	Female
Voltage - Rated	250VAC
Additional Feature	ROHS COMPLIANT
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3.2A per Contact
Total Number of Contacts	5
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	STAGGERED
Polarization Key	POLARIZED HOUSING
Insertion Force-Max	.3892 N
Withdrawl Force-Min	.278 N
Contact Finish Thickness - Mating	10.0μin 0.25μm
Stack Height (Mating)	6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

SFM-105-L2-L-S-TR Product Details

SFM-105-L2-L-S-TR Overview

The packaging is Receptacle.Surface Mount indicates that the device is mounted.Packaging is performed using a Tape & Reel (TR) case.This product is in the Tiger Eye™ SFM Series.Additionally, there are other features such as ROHS COMPLIANT.It operates at an operating temperature of -55°C~125°C.
