Name: FH34S-24S-0.5SH(99)
Brand: Hirose Electric Co Ltd
SKU: FH34S-24S-0.5SH(99)
Availability: InStock

new-10%

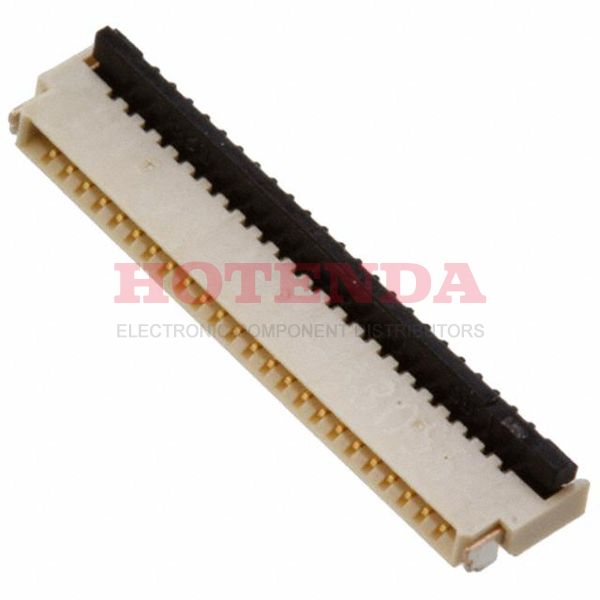

FH34S-24S-0.5SH(99)

Manufacturer part number:FH34S-24S-0.5SH(99)

Manufacturer:Hirose Electric Co Ltd

Description:FH34S-24S-0.5SH(99) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH34S-24S-0.5SH(99) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH34S
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	24
Number of Rows	1
Voltage - Rated	50V
Subcategory	Headers and Edge Type Connectors
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	24
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	0.551 inch
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.039 inch
Housing Color	Beige
Body Depth	0.126 inch
Contact Style	BELLOWED TYPE
Contact Resistance	100mOhm
Insulation Resistance	500000000Ohm
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Tapered
Locking Feature	Rotary Lock, Backlock
Actuator Color	Black
Height Above Board	0.039 1.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH34S-24S-0.5SH(99) Product Details

FH34S-24S-0.5SH(99) Overview

This product is packaged in a FFC/FPC CONNECTOR box.This device's mounting type is Surface Mount, Right Angle.It's packaged in a Tape & Reel (TR) case.The product is a part of the FH34S Series.A number of features make the Zero Insertion Force (ZIF) feature more powerful.There is a Surface Mount mount on the part.Devices operate at -55°C~85°C operating temperatures.
