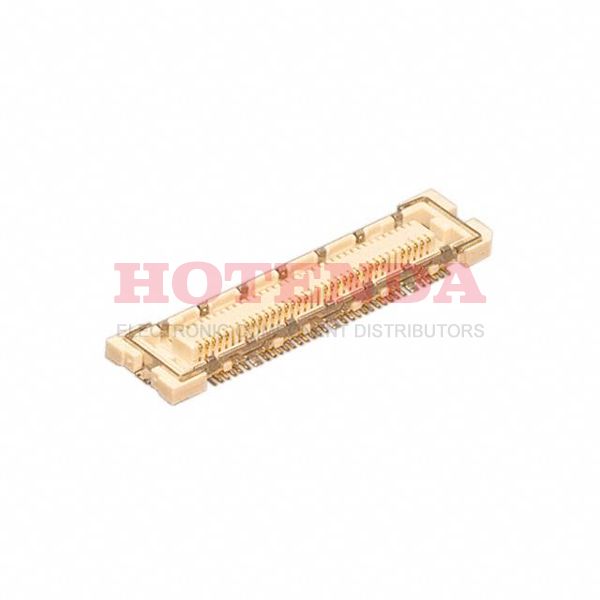

Name: FX11LA-60S/6-SV(71)
Brand: Hirose Electric Co Ltd
SKU: FX11LA-60S/6-SV(71)
Price: 4.96000 USD
Availability: InStock

new-10%

FX11LA-60S/6-SV(71)

Manufacturer part number:FX11LA-60S/6-SV(71)

Manufacturer:Hirose Electric Co Ltd

Description:FX11LA-60S/6-SV(71) datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FX11LA-60S/6-SV(71) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polymer
Packaging	Tray
Published	2008
Series	FX11
Feature	Board Guide, Ground Plate, Solder Retention
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
ECCN Code	EAR99
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	60
Number of Rows	2
Gender	Receptacle
Voltage - Rated	50V
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.020 0.50mm
Current Rating	300mA
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
Lead Pitch	500μm
Number of Contacts	66
PCB Contact Pattern	RECTANGULAR
Operating Temperature (Max)	85°C
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Min)	-55°C
UL Flammability Code	94V-0
Housing Color	Beige
Rated Current (Signal)	0.3A
Contact Style	BELLOWED TYPE
Insulation Resistance	100000000Ohm
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	150VAC V
Durability	50 Cycles
Contact Pattern	RECTANGULAR
Contact Finish Thickness	3.94μin 0.10μm
Height Above Board	0.065 1.65mm
Stack Height	2mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FX11LA-60S/6-SV(71) Product Details

FX11LA-60S/6-SV(71) Overview

The product comes in a package of Receptacle, Center Strip Contacts.We use a Tray case to package the product.A Surface Mount mounting type is specified for the device.The product is a member of the FX11 Series.In operation, Board Guide, Ground Plate, Solder Retention should remain constant.For mounting this component, a Surface Mount socket is required.In addition, there are other features, such as LOW PROFILE, to mention just a few.
