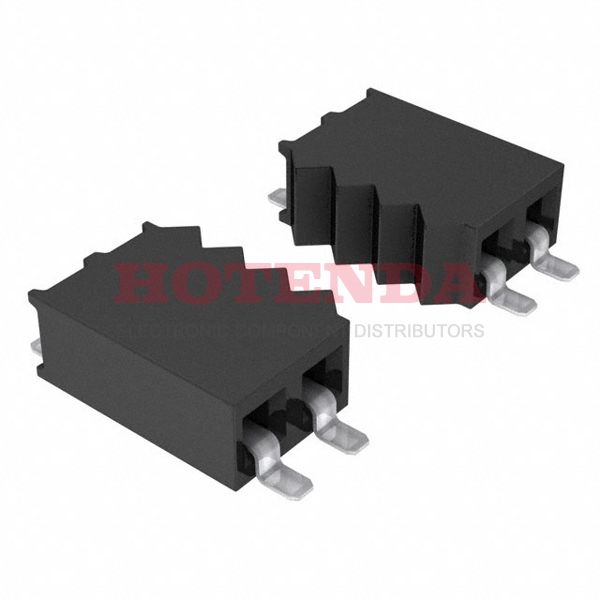

Name: SSM-144-S-SH
Brand: Samtec Inc.
SKU: SSM-144-S-SH
Availability: InStock

new-10%

SSM-144-S-SH

Manufacturer part number:SSM-144-S-SH

Manufacturer:Samtec Inc.

Description:1 Rows Receptacle Solder Phosphor Bronze Surface Mount, Right Angle Tube Gold Liquid Crystal Polymer (LCP) 44 Positions Female Socket

Case Package:SOT-23

Datasheet:SSM-144-S-SH Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Plastic
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2000
Series	SSM
Part Status	Discontinued
Termination	Solder
Connector Type	Receptacle
Number of Positions	44
Color	Black
Number of Rows	1
Voltage - Rated	405VAC 572VDC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	5.2A per Contact
Pitch	2.54mm
Insulation Height	0.125 3.18mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Contacts	44
Contact Finish - Post	Tin
Housing Color	Black
Height	3.18mm
Length	112mm
Width	8.13mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SSM-144-S-SH Product Details

SSM-144-S-SH Overview

Receptacle packaging is included.This device has a mounting type of Surface Mount, Right Angle.We package the product with a Tube case.The product is part of the SSM Series.You've got Surface Mount mounted on the part.This device runs at -55°C~125°C operating temperature.
