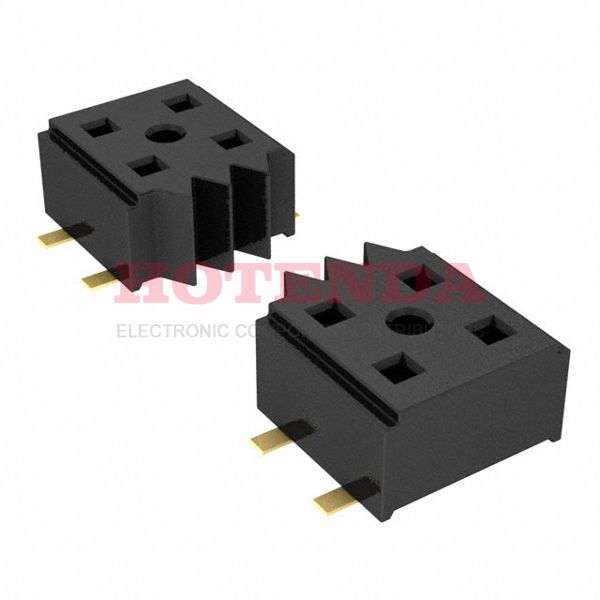

Name: CLT-106-02-H-D-A
Brand: Samtec Inc.
SKU: CLT-106-02-H-D-A
Availability: InStock

new-10%

CLT-106-02-H-D-A

Manufacturer part number:CLT-106-02-H-D-A

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTubeGoldLiquid Crystal Polymer (LCP)12 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CLT-106-02-H-D-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Gold
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	CLT
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	12
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	4.1A per Contact
Pitch	2mm
Insulation Height	0.083 2.10mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Number of Contacts	12
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

CLT-106-02-H-D-A Product Details

CLT-106-02-H-D-A Overview

Packaging is in the form of Receptacle.Surface Mount is the mounting type.Tube cases are used to package the product.This product is in the CLT Series.With its Board Guide feature, it is more powerful in many ways.In this case, the device operates at -55°C~125°C Operating Temperature.
