Name: M52-5101545
Brand: Harwin Inc.
SKU: M52-5101545
Availability: InStock

new-10%

M52-5101545

Manufacturer part number:M52-5101545

Manufacturer:Harwin Inc.

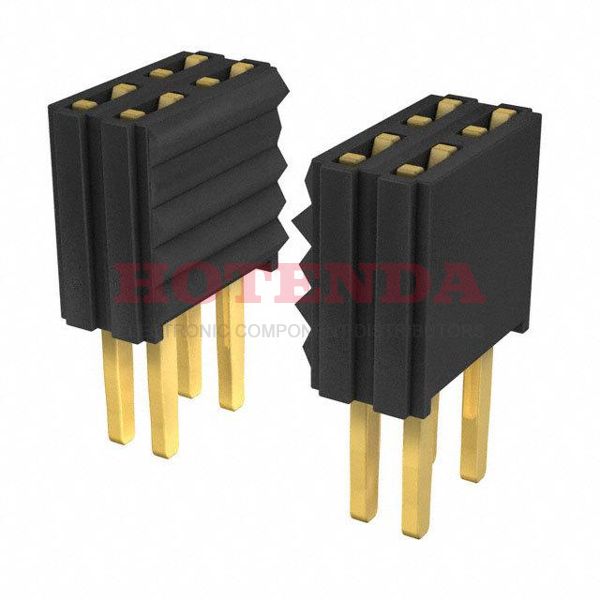

Description:2 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polyamide (PA6T), Nylon 6T 30 Positions Forked

Case Package:SOT-23

Datasheet:M52-5101545 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Rectangular
Insulation Material	Polyamide (PA6T), Nylon 6T
Weight	1.086014g
Operating Temperature	-40°C~105°C
Packaging	Tube
Published	2013
Series	Archer M52
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	30
Applications	General Purpose, Medical, Telecommunications
Number of Rows	2
Additional Feature	ROHS COMPLIANT
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Current Rating (Amps)	1A
Insulation Height	0.181 4.60mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	0.766 inch
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.118 3.00mm
Number Of PCB Rows	2
Body Breadth	0.197 inch
Contact Gender	Female
UL Flammability Code	94V-0
Body Depth	0.181 inch
Insulation Resistance	1000000000Ohm
Mating Contact Pitch	0.05 inch
Dielectric Withstanding Voltage	500VAC V
Insertion Force-Max	1.0008 N
Withdrawl Force-Min	.11954 N
Length - Termination	0.118 inch
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

M52-5101545 Product Details

M52-5101545 Overview

It comes in a Receptacle package.Through Hole is the mounting type of the device.We pack the product in a Tube case.This is from the Archer M52 Series.As well as ROHS COMPLIANT, to name a few.This device can be used for General Purpose, Medical, Telecommunications.This part is mounted by Through Hole. -40°C~105°C Operating Temperature is the default.
