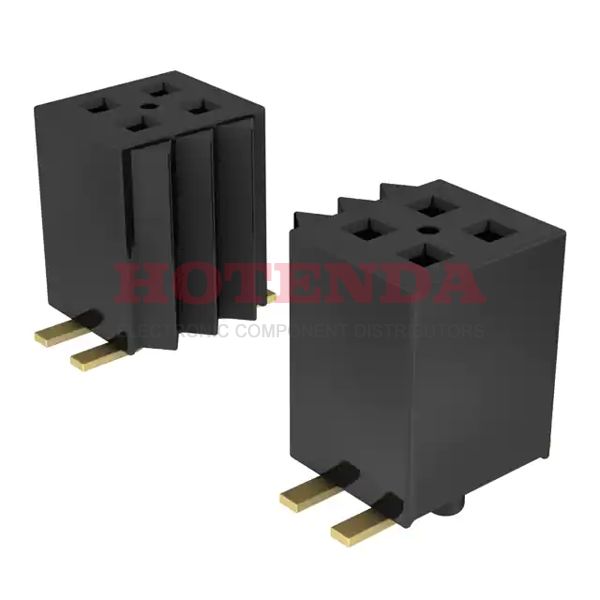

Name: FLE-106-01-H-DV-A
Brand: Samtec Inc.
SKU: FLE-106-01-H-DV-A
Availability: InStock

new-10%

FLE-106-01-H-DV-A

Manufacturer part number:FLE-106-01-H-DV-A

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTubeGoldLiquid Crystal Polymer (LCP)12 PositionsFemale Socket

Case Package:SOT-23

Datasheet:FLE-106-01-H-DV-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	FLE
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	12
Number of Rows	2
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	2A per Contact
Insulation Height	0.172 4.37mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	3.00μin 0.076μm
RoHS Status	ROHS3 Compliant

FLE-106-01-H-DV-A Product Details

FLE-106-01-H-DV-A Overview

Currently, it is packaged in Receptacle.The mounting type of the device is Surface Mount.To package the product, we use a Tube case.The product is a member of the FLE Series.Many aspects of its Board Guide feature increase its effectiveness.Running in -55°C~125°C Operating Temperature.
