Name: M80-4223042
Brand: Harwin Inc.
SKU: M80-4223042
Availability: InStock

new-10%

M80-4223042

Manufacturer part number:M80-4223042

Manufacturer:Harwin Inc.

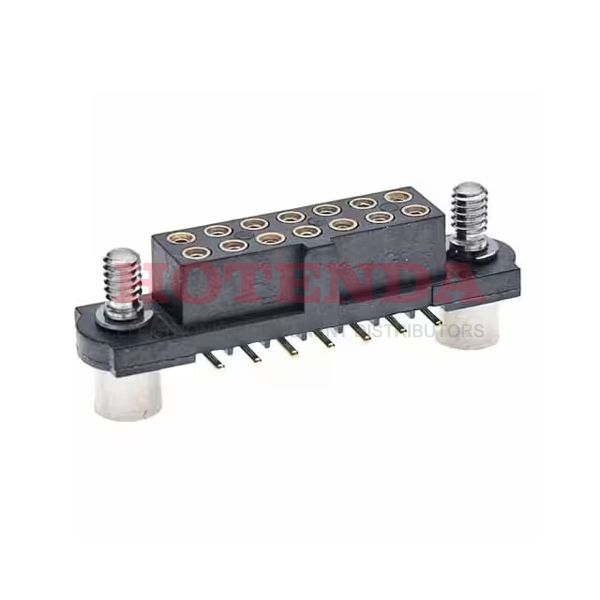

Description:2 Rows Receptacle Solder Beryllium Copper Surface Mount Tube Gold Polyphenylene Sulfide (PPS), Glass Filled 30 Positions Female Socket

Case Package:SOT-23

Datasheet:M80-4223042 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Circular
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	Datamate J-Tek
JESD-609 Code	e3
Feature	Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	30
Applications	Automotive, General Purpose, Military
Number of Rows	2
Voltage - Rated	120V
Additional Feature	ROHS COMPLIANT
HTS Code	8536.69.40.40
Fastening Type	Screw Lock
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Current Rating (Amps)	3A
Total Number of Contacts	30
Insulation Height	0.220 5.60mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	1.575 inch
Row Spacing - Mating	0.079 (2.00mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Insulation Resistance	100000000Ohm
Mating Contact Pitch	0.079 inch
Polarization Key	POLARIZED HOUSING
Durability	500 Cycles
Contact Finish Thickness - Mating	12.0μin 0.30μm
Contact Finish Thickness - Post	137.8μin 3.50μm
Stack Height (Mating)	7.8mm 8.05mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

M80-4223042 Product Details

M80-4223042 Overview

Packaging for this item is Receptacle.There is a mounting type of Surface Mount for this device.It is necessary to use a Tube case for packaging the product.This product is part of the Datamate J-Tek Series.Moreover, there are a number of other features, including ROHS COMPLIANT, to name just a few.A possible application for the device is Automotive, General Purpose, Military.In many ways, its Jackscrews, Mating Flange, Mounting Flange, Polarizing Key feature makes it more powerful.In this case, the device operates at -55°C~125°C Operating Temperature.
