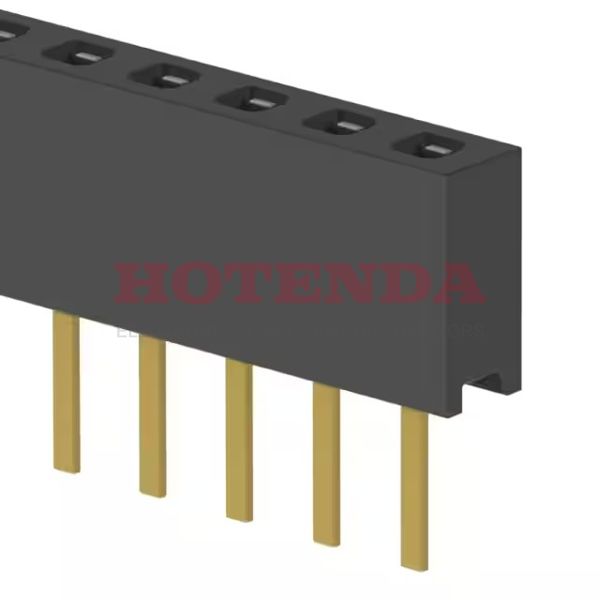

Name: MMS-125-01-F-SV
Brand: Samtec Inc.
SKU: MMS-125-01-F-SV
Price: 8.54000 USD
Availability: InStock

new

MMS-125-01-F-SV

Manufacturer part number:MMS-125-01-F-SV

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderPhosphor BronzeThrough HoleTubeGoldLiquid Crystal Polymer (LCP)25 PositionsFemale Socket

Case Package:SOT-23

Datasheet:MMS-125-01-F-SV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	MMS
JESD-609 Code	e3
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	25
Number of Rows	1
Gender	Female
Additional Feature	TOP ENTRY; BOTTOM ENTRY
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.9A per Contact
Terminal Pitch	2mm
Insulation Height	0.175 4.45mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Contact Length - Post	0.115 2.92mm
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.079 inch
Mating Contact Pitch	0.079 inch
Polarization Key	POLARIZED HOUSING
Plating Thickness	FLASH inch
Contact Finish Thickness - Mating	3.00μin 0.076μm
RoHS Status	ROHS3 Compliant

MMS-125-01-F-SV Product Details

MMS-125-01-F-SV Overview

This product is packaged in a Receptacle carton.This device's mounting type is Through Hole.To package the product, we use a Tube case.It is part of the MMS Series of products.In addition, there are other features, such as TOP ENTRY; BOTTOM ENTRY, to mention just a few.Through Hole is mounting the part.Devices operate at -55°C~125°C operating temperatures.
