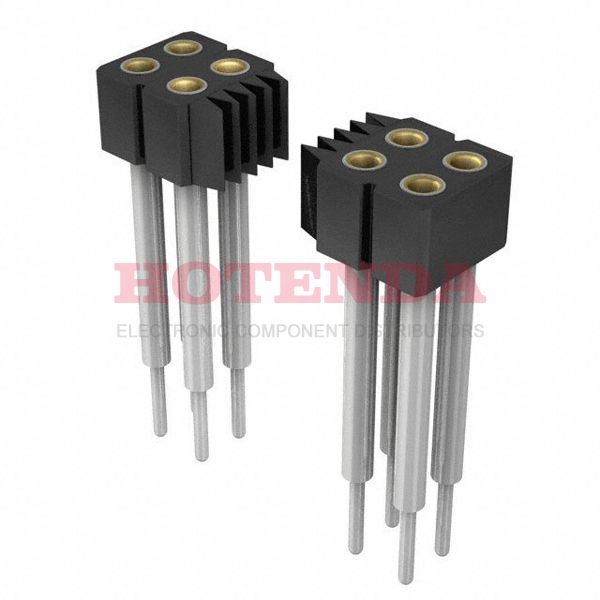

Name: 833-83-012-10-453101
Brand: Preci-Dip
SKU: 833-83-012-10-453101
Price: 1.99000 USD
Availability: InStock

new-10%

833-83-012-10-453101

Manufacturer part number:833-83-012-10-453101

Manufacturer:Preci-Dip

Description:2 RowsSocketSolderBeryllium CopperThrough HoleBulkGoldLiquid Crystal Polymer (LCP), Glass Filled12 PositionsFemale Socket

Case Package:SOT-23

Datasheet:833-83-012-10-453101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	833
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket
Number of Positions	12
Number of Rows	2
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Insulation Height	0.315 8.00mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.126 3.20mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.165 inch
Body Depth	0.315 inch
Contact Resistance	10mOhm
Insulation Resistance	10000000000Ohm
Mating Contact Pitch	0.079 inch
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	1400VAC V
Durability	500 Cycles
Plating Thickness	30μin
Contact Finish Thickness - Mating	29.5μin 0.75μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

833-83-012-10-453101 Product Details

833-83-012-10-453101 Overview

This product is packaged in a Socket cartonMounting type Through Hole is selected for the device.This product is packaged in a case marked Bulk.It's part of the 833 Series.There's a Through Hole mount on the part.In this case, the device operates at -55°C~125°C Operating Temperature.
