Name: M52-5102045
Brand: Harwin Inc.
SKU: M52-5102045
Price: 3.17000 USD
Availability: InStock

new-10%

M52-5102045

Manufacturer part number:M52-5102045

Manufacturer:Harwin Inc.

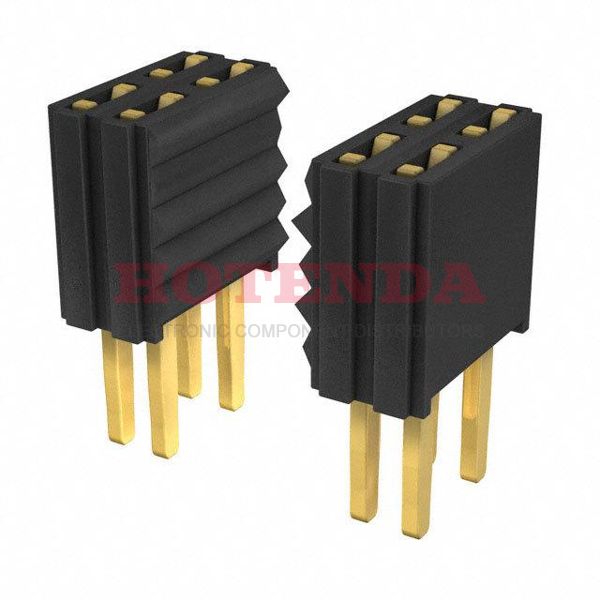

Description:2 RowsReceptacleSolderPhosphor BronzeThrough HoleTubeGoldPolyamide (PA6T), Nylon 6T40 PositionsForked

Case Package:SOT-23

Datasheet:M52-5102045 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Rectangular
Insulation Material	Polyamide (PA6T), Nylon 6T
Housing Material	Nylon
Weight	1.448009g
Operating Temperature	-40°C~105°C
Packaging	Tube
Published	2006
Series	Archer M52
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	40
Applications	General Purpose, Medical, Telecommunications
Number of Rows	2
Voltage - Rated	500V
Additional Feature	ROHS COMPLIANT
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Orientation	Straight
Depth	5mm
Insulation Height	0.181 4.60mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	1A
Pitch - Mating	0.050 1.27mm
Number of Conductors	ONE
Reference Standard	UL
Voltage - Rated AC	150V
Reliability	COMMERCIAL
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.118 3.00mm
Number Of PCB Rows	2
Lead Pitch	1.27mm
Body Breadth	0.197 inch
Contact Gender	Female
UL Flammability Code	94V-0
Housing Color	Black
Rated Current (Signal)	1A
Contact Resistance	30mOhm
Insulation Resistance	1GOhm
Mating Contact Pitch	0.05 inch
Max Current Rating	1A
Dielectric Withstanding Voltage	500VAC V
Durability	300 Cycles
Insertion Force-Max	1.0008 N
Withdrawl Force-Min	.11954 N
Height	3.55mm
Length	25.4mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

M52-5102045 Product Details

M52-5102045 Overview

Packaging is Receptacle.It's mounted Through Hole.Tube cases are used to package the product.The product is a part of the Archer M52 Series.Additionally, there are features like ROHS COMPLIANT, just to name a few.General Purpose, Medical, Telecommunications is a possible application for the device.There is a Through Hole mount on the part.In this case, the device runs at -40°C~105°C Operating Temperature.
