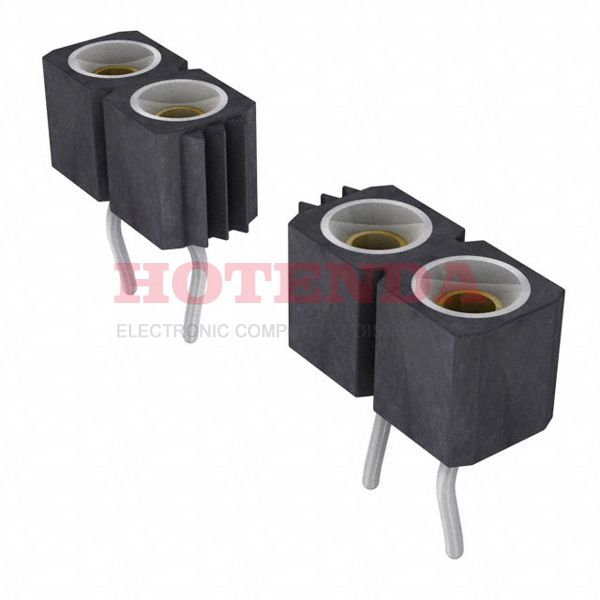

Name: 310-83-143-01-666101
Brand: Preci-Dip
SKU: 310-83-143-01-666101
Price: 4.84000 USD
Availability: InStock

new-10%

310-83-143-01-666101

Manufacturer part number:310-83-143-01-666101

Manufacturer:Preci-Dip

Description:1 RowsSocketPress-Fit, SolderBeryllium CopperThrough HoleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled43 PositionsFemale Socket

Case Package:SOT-23

Datasheet:310-83-143-01-666101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	310
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Press-Fit, Solder
Connector Type	Socket
Number of Positions	43
Number of Rows	1
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Terminal Pitch	2.54mm
Insulation Height	0.165 4.20mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	4.3 inch
Contact Length - Post	0.122 3.10mm
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Durability	500 Cycles
Plating Thickness	29μin
Contact Finish Thickness - Mating	29.5μin 0.75μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

310-83-143-01-666101 Product Details

310-83-143-01-666101 Overview

Currently, it is packaged in Socket.Through Hole is the type of mounting for the device.Bulk cases are used to package the product.The product belongs to the 310 Series.Through Hole mounts the part.The device runs in -55°C~125°C Operating Temperature.
