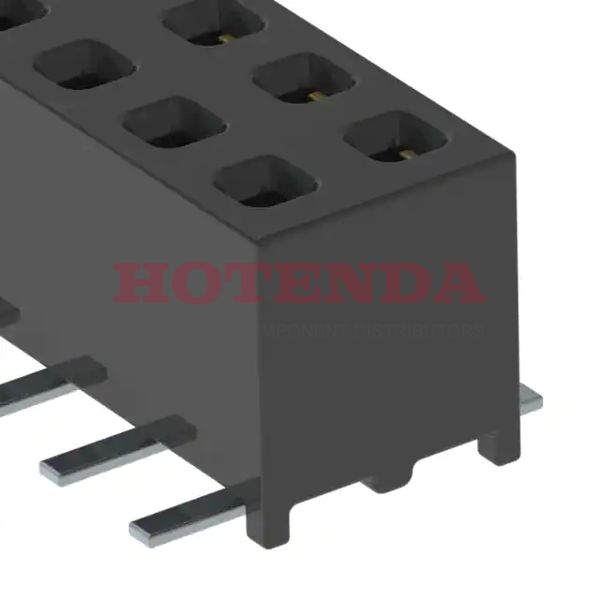

Name: MMS-117-02-F-DV-P-TR
Brand: Samtec Inc.
SKU: MMS-117-02-F-DV-P-TR
Availability: InStock

new-10%

MMS-117-02-F-DV-P-TR

Manufacturer part number:MMS-117-02-F-DV-P-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)34 PositionsFemale Socket

Case Package:SOT-23

Datasheet:MMS-117-02-F-DV-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	MMS
Feature	Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	34
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.9A per Contact
Total Number of Contacts	34
Insulation Height	0.177 4.50mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	compliant
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3.00μin 0.076μm

MMS-117-02-F-DV-P-TR Product Details

MMS-117-02-F-DV-P-TR Overview

A Receptacle package is included with it.A Surface Mount mounting type is specified for the device.Packaged in a Tape & Reel (TR) case.As a product of the MMS Series, it can be found in this category.Its Pick and Place feature makes it more powerful in a number of ways.Device runs in -55°C~125°C operating temperature.
