Name: BCS-119-L-D-HE-034
Brand: Samtec Inc.
SKU: BCS-119-L-D-HE-034
Availability: InStock

new-10%

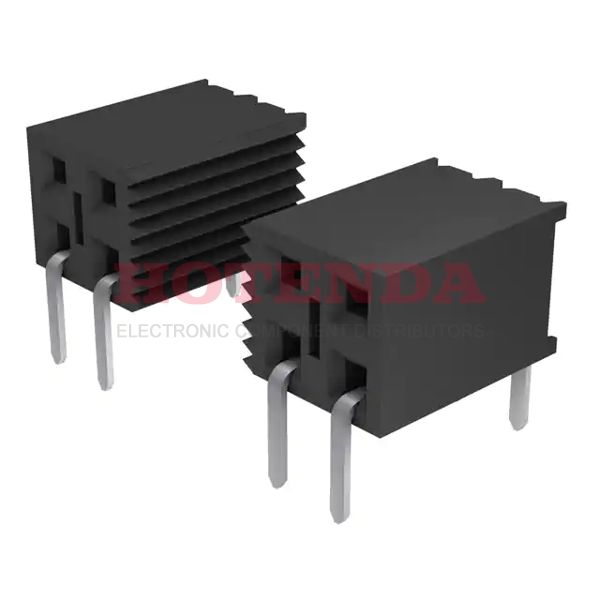

BCS-119-L-D-HE-034

Manufacturer part number:BCS-119-L-D-HE-034

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeThrough Hole, Right AngleTubeGoldLiquid Crystal Polymer (LCP), Glass Filled38 PositionsFemale Socket

Case Package:SOT-23

Datasheet:BCS-119-L-D-HE-034 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	Tiger Claw™ BCS
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	38
Number of Rows	2
Voltage - Rated	475VAC
Additional Feature	34TH PIN POLARIZED
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.6A per Contact
Insulation Height	0.210 5.33mm
Style	Board to Board
Number of Positions Loaded	37
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Body Length or Diameter	1.9 inch
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.125 3.18mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Contact Resistance	10mOhm
Insulation Resistance	5000000000Ohm
Mating Contact Pitch	0.1 inch
Polarization Key	POLAR PIN POSITION
PCB Contact Row Spacing	7.874 mm
Durability	500 Cycles
Insertion Force-Max	1.39 N
Withdrawl Force-Min	.834 N
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

BCS-119-L-D-HE-034 Product Details

BCS-119-L-D-HE-034 Overview

Currently, it is packaged in Receptacle.This device has a Through Hole, Right Angle mounting type.Packaging is performed using a Tube case.This is from the Tiger Claw™ BCS Series.There are also other features, like 34TH PIN POLARIZED, to name a few.Running in -55°C~125°C Operating Temperature.
