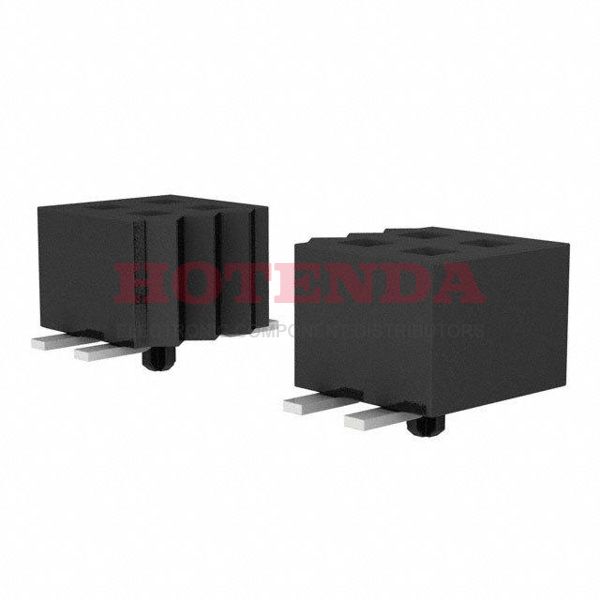

Name: CLP-110-02-SM-D-A-K-TR
Brand: Samtec Inc.
SKU: CLP-110-02-SM-D-A-K-TR
Availability: InStock

new-10%

CLP-110-02-SM-D-A-K-TR

Manufacturer part number:CLP-110-02-SM-D-A-K-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)20 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CLP-110-02-SM-D-A-K-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Board Mounting Option	PEG
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2016
Series	CLP
JESD-609 Code	e3
Feature	Board Guide, Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	20
Number of Rows	2
Gender	Female
Voltage - Rated	240VAC 330VDC
Additional Feature	LOW PROFILE
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.3A per Contact
Total Number of Contacts	20
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reliability	COMMERCIAL
Body Length or Diameter	0.517 inch
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Body Depth	0.09 inch
Mating Contact Pitch	0.05 inch
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

CLP-110-02-SM-D-A-K-TR Product Details

CLP-110-02-SM-D-A-K-TR Overview

A Receptacle package is included with it.Surface Mount is the mount type.To package the product, a Tape & Reel (TR) case is used.The product is a member of the CLP Series.In addition, there are other features such as LOW PROFILE, to mention only a few.Several benefits come from the Board Guide, Pick and Place feature.-55°C~125°C Operating Temperature is what the device runs at.
