Name: HLE-146-02-G-DV-TE
Brand: Samtec Inc.
SKU: HLE-146-02-G-DV-TE
Availability: InStock

new-10%

HLE-146-02-G-DV-TE

Manufacturer part number:HLE-146-02-G-DV-TE

Manufacturer:Samtec Inc.

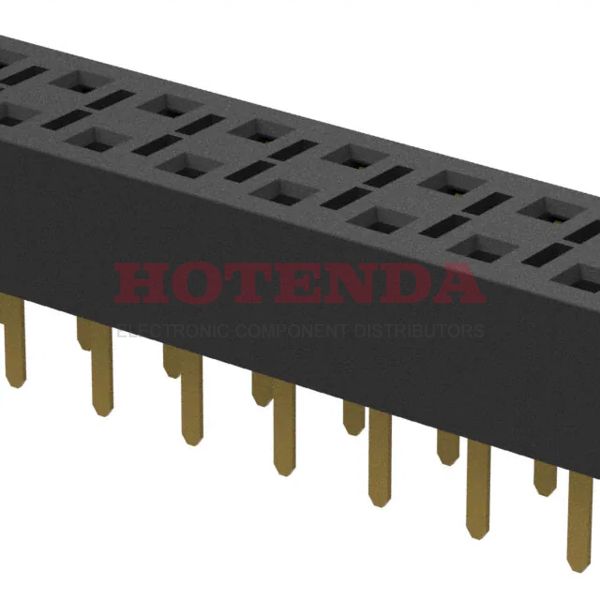

Description:2 Rows Receptacle Solder Beryllium Copper Through Hole Tube Gold Liquid Crystal Polymer (LCP) 92 Positions Female Socket

Case Package:SOT-23

Datasheet:HLE-146-02-G-DV-TE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	HLE
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Receptacle
Number of Positions	92
Number of Rows	2
Gender	Female
Voltage - Rated	400VAC
Additional Feature	TOP ENTRY
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Insulation Height	0.138 3.50mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.120 3.05mm
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	3.00μin 0.076μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

HLE-146-02-G-DV-TE Product Details

HLE-146-02-G-DV-TE Overview

Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the HLE Series, it can be found in this category.There are also other features such as TOP ENTRY, to name only a few.In this case, Through Hole mounts the part.The device is operating at -55°C~125°C Operating Temperature.
