Name: M80-4013401
Brand: Harwin Inc.
SKU: M80-4013401
Availability: InStock

new-10%

M80-4013401

Manufacturer part number:M80-4013401

Manufacturer:Harwin Inc.

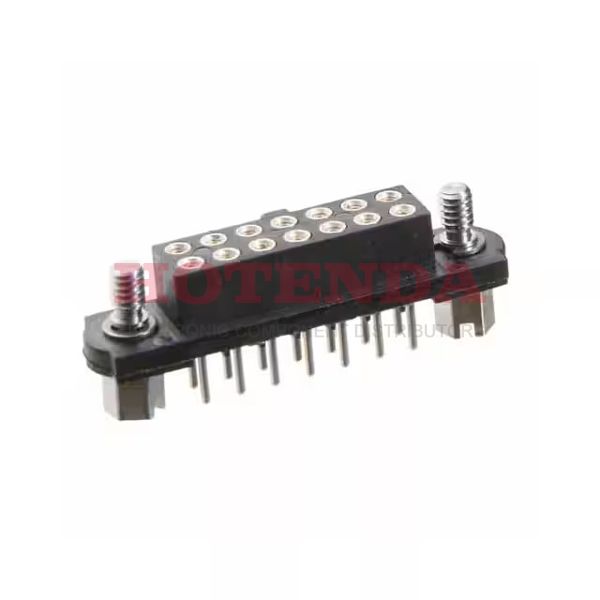

Description:Headers & Wire Housings 17+17 POS FEM +J/S 4.5mm TAIL TIN/LEAD

Case Package:SOT-23

Datasheet:M80-4013401 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Beryllium Copper
Contact Plating	Gold, Tin
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2010
Series	Datamate J-Tek
JESD-609 Code	e0
Feature	Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	34
Applications	Automotive, General Purpose, Military
Number of Rows	2
Voltage - Rated	120V
Additional Feature	SHROUDED, POLERIZIED
HTS Code	8536.69.40.40
Fastening Type	Screw Lock
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Insulation Height	0.205 5.20mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	not_compliant
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	1.339 inch
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.181 4.60mm
Number Of PCB Rows	2
Contact Finish - Post	Tin-Lead
PCB Contact Pattern	RECTANGULAR
Contact Gender	Female
UL Flammability Code	94V-0
Insulation Resistance	100000000Ohm
Mating Contact Pitch	0.079 inch
Durability	500 Cycles
Plating Thickness	11μin
Contact Finish Thickness - Mating	12.0μin 0.30μm
Contact Finish Thickness - Post	137.8μin 3.50μm
Length - Termination	0.181 inch
Stack Height (Mating)	7.3mm 7.55mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
