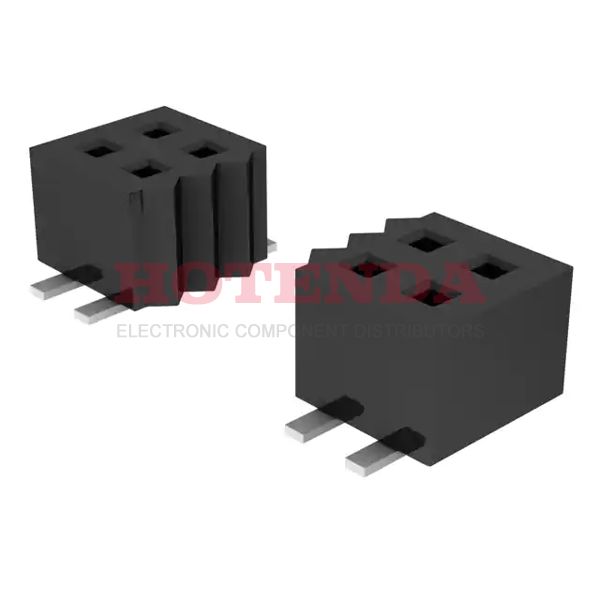

Name: CLP-140-02-S-D-BE
Brand: Samtec Inc.
SKU: CLP-140-02-S-D-BE
Availability: InStock

new-10%

CLP-140-02-S-D-BE

Manufacturer part number:CLP-140-02-S-D-BE

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle, Bottom Entry Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 80 Positions Female Socket

Case Package:SOT-23

Datasheet:CLP-140-02-S-D-BE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Gold
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	CLP
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Bottom Entry
Number of Positions	80
Number of Rows	2
Gender	Female
Voltage - Rated	240VAC 330VDC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3.3A per Contact
Pitch	1.27mm
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Number of Contacts	80
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

CLP-140-02-S-D-BE Product Details

CLP-140-02-S-D-BE Overview

Receptacle, Bottom Entry packaging is included.This device has a mounting type of Surface Mount.We package the product with a Tube case.The product is part of the CLP Series.This device runs at -55°C~125°C operating temperature.
